59.3.14.15 Create an email profile in SQL Server

T-Workflow actions that provide email notification capabilities require, to be correctly executed, a valid email profile to be created in your SQL Server.

This section contains the step-by-step procedure to configure a SQL Server DB Mail (SQL Server 2005 and higher) to send emails using an email account (SMTP, Gmail or Windows Live Mail). The steps to configure DB Mail are the following details:

1. Open Microsoft SQL Server Management Studio

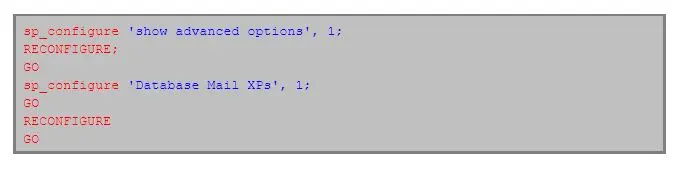

2. Enable the Database Mail service to execute the following statement:

3756_Enable_Database_Mail

3. Permit to send mail to the SQL Agents service account, either MS domain (e.g. mydomain\myuser) or MS SQL (e.g. sa). To do this, just add said account to the DatabaseMailUserRole database role following one of the methods below:

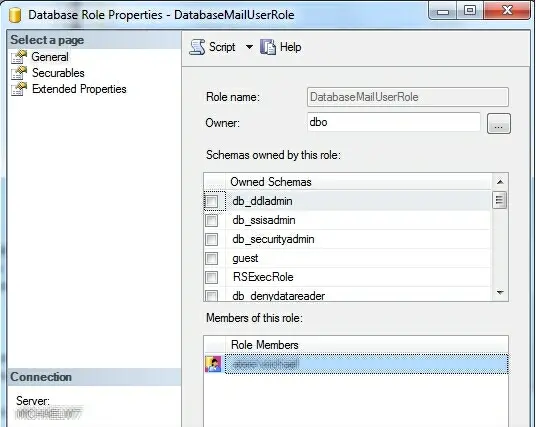

▪Expand the "Databases > System databases > msdb > Security > Roles > DB roles", double-click on the DatabaseMailUserRole and add the SQL Agents service account as a member of this role:
3757_DB_roles

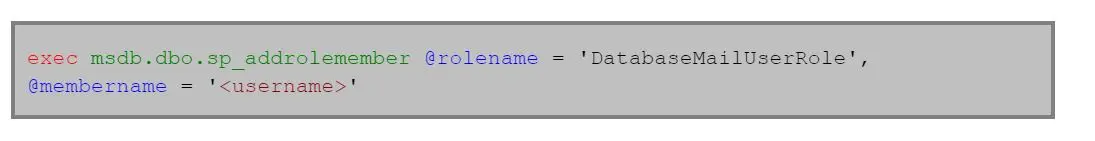

▪Create a new query and execute the following statement:

new_query

exec msdb. dbo.sp_addrolemember @rolename = 'DatabaseMailUserRole',

@membername = '<username>'

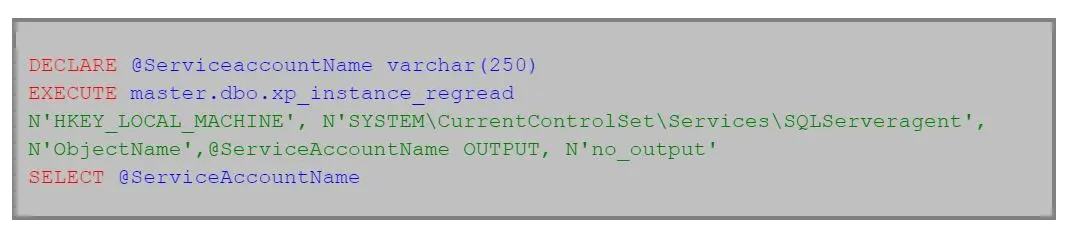

It's worth mentioning that you can get the name of the SQL Agents service account by executing the following statement:

QL_Agents_service_account

DECLARE @ServiceaccountName varchar(250)
EXECUTE master. dbo.xp_instance_regread
N'HKEY_LOCAL_MACHINE', N'SYSTEM\CurrentControlSet\Services\SQLServeragent',
N'ObjectName',@ServiceAccountName OUTPUT, N'no_output'
SELECT @ServiceAccountName

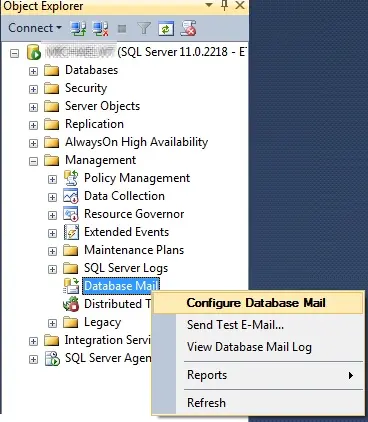

4. In the Object Explorer tree, expand the Management section, right-click on Database Mail and choose Configure Database Mail to start the Database Mail Configuration Wizard:
Configure_Database_Mail

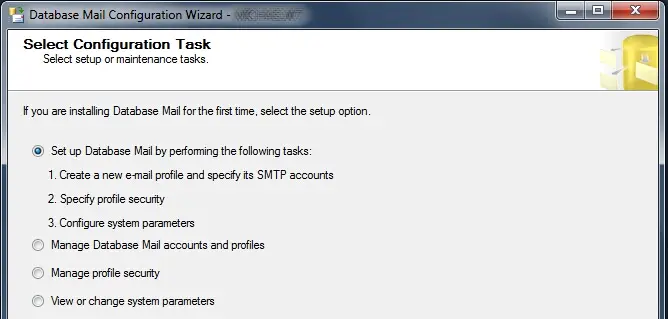

5. Click Next. In the Select Configuration Task screen, choose "Set up Database Mail by performing the following tasks:" and click "Next".
Set_up_Database_Mail_by_performing_the_following_tasks

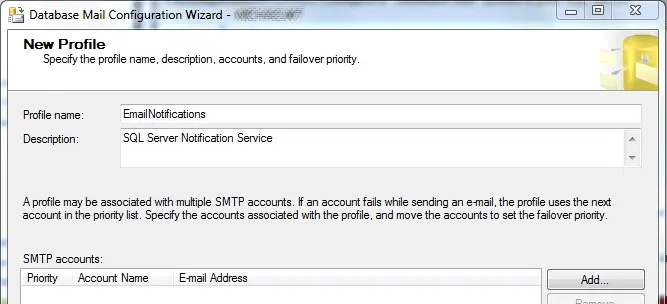

6. Now, you will be required to enter a Profile Name. This can be any Arbitrary Name that will help you identify the Profile. You might also want to add a Description.
Profile_Name

7. Click on Add to create a new Database Mail Account. Enter an account name and description, set the following parameters, and click on [Finish].

Email address

SMTP: Name of the email address for the account. This is the email address from which the email was sent.

(e.g. sender@my-station.tv)

GMAIL: Your Gmail ID

(e.g. john.doe@gmail.com)

LIVE MAIL: Your Live email ID

(e.g. john.doe@hotmail.com)

Display Name

SMTP: Name to display on email messages sent from this account.

(e.g. automatic email sender)

GMAIL: Your name

(e.g. John Doe)

LIVE MAIL: Your name

(e.g. John Doe)

Reply email

SMTP: Email address to use for replies to email messages sent from this account.

(e.g. admin@my-station.tv)

GMAIL: Any reply-to email account

(e.g. john.doe@gmail.com)

LIVE MAIL: Any reply-to email account

(e.g. john.doe@hotmail.com)

Server name

SMTP: Name or IP address of the account's SMTP server to send email.

(e.g. smtp. mystation. tv)

GMAIL: smtp.gmail.com

LIVE MAIL: smtp.live.com

Port number

SMTP: Port number of the SMTP server for this account. (the default SMTP port is 25)

GMAIL: 587

LIVE MAIL: 25

SSL

SMTP: Enable this if your server uses an SSL connection

GMAIL: Enabled

LIVE MAIL: Enabled

SMTP auth.

SMTP: Indicate an authentication method:

Windows(suggested) - Use the credentials of the Windows account of the "SQL Server SQL Server Database Engine". - (e.g. mystation\sis)

Essential - Use a specific username and password that do not correspond to a SQL Server user or Windows user. (e.g. user=admin; pass=1234)

Anonymous - Authentication is not required.

GMAIL: Basic

User - Your Gmail ID

Pass - Password for your Gmail ID

LIVE MAIL: Basic

User - Your Live Mail ID

Pass - Password for your Live Mail ID

NB: Optionally, you can add more accounts to your Profile so that the following statement is used if an account fails while sending an email.

8. Back on the New Profile screen, click Next. The next Manage Profile Security screen allows you to set the Public Profiles, the Private Profiles and the Default Profiles for each of the Public and Private Profiles.
3758_Private_Profiles

9. Click Next. This will move us to the Configure System Parameters screen. You may want to tweak the parameters; however, we will keep these as default for demonstration purposes. Now, click Next.

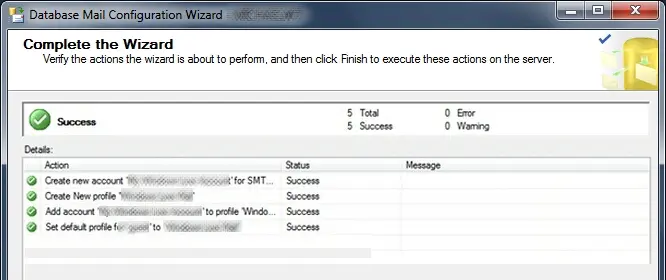

10. Review the parameters in the Complete the Wizard screen and click Finish. Ensure that all 5 Actions succeed, and then click Close.
Complete_the_Wizard

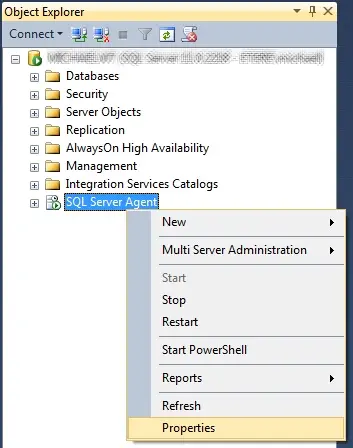

11. Enable sending alerts from SQL Agent this, right-clicking on the SQL Server Agent and selecting the properties option:
SQL_Server_Agen

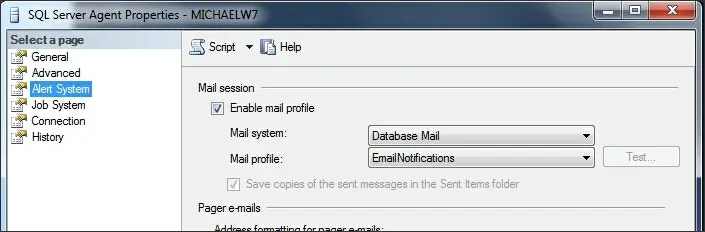

Under the Alert system section, check on the "Enable mail profile" option and set the system and Profile to be used:
Enable_mail_profile

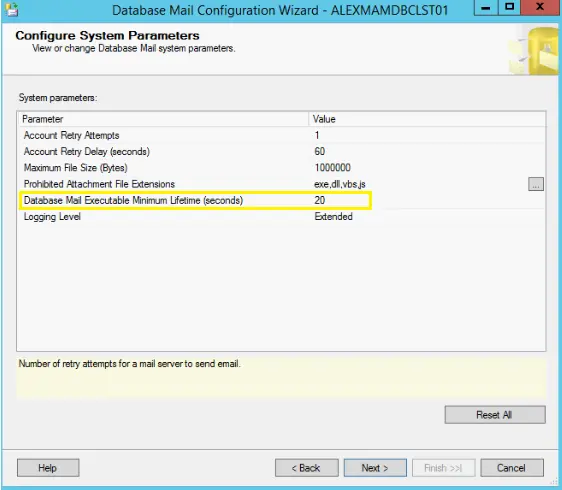

12. Next, you need to set the "Database Mail Executable Minimum Lifetime (seconds)" parameter value from default 600 seconds to "20 seconds" as the widely accepted value to prevent the email process from stalling in the database.
Database_Mail_Executable_Minimum_Lifetime_(seconds)

After which, you can verify the above setting by sending a test email using one of the following methods:

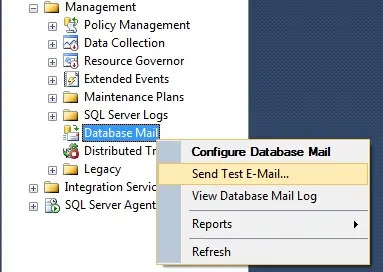

a) Right-click on Database Mail, choose Send Test Email and enter a recipient (To) and click Send Test Email:
send_the_email_using_a_stored_procedure

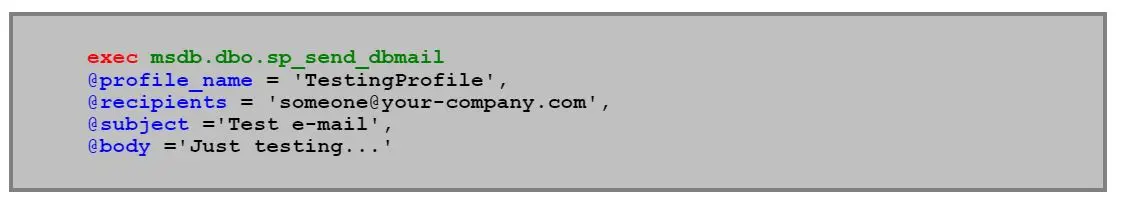

b) Alternatively, send the email using a stored procedure as follows:

exec msdb. dbo.sp_send_dbmail
@profile_name = 'TestingProfile',
@recipients = 'someone@your-company.com',
@subject ='Test e-mail',
@body ='Just testing...'
