84.4.4.88 CUSTOM > WON ASSET XML

Export scope
The "WON Asset XML" export allows generating an XML file containing a set of asset metadata required by Whats' ON system. The filename of the exported file will depend on whether the operation was performed either manually or automatically:
•Manual export: MatId_yymmddhhmmsszzz.XML
       where:
               MatId is the WON code retrieved from an asset's metadata between "ABC", "LBC", "SBC" (currently used) or "TX External".
       for instance:
 LBC253127_140219130630123.xml
•Automatic export: The filename is defined by the calling procedure.
This export includes some tags based on Flexi-metadata, which if compiled, will be exported as follows:
Exported Tag - MatID
Required Flexi-metadata : ABC, LBC, SBC (currently used) or TX External
Type : string
Exported Tag - Aspect Ratio
Required Flexi-metadata : 169 or 43
Type : integer
Exported Tag - Definition
Required Flexi-metadata : SD or HD
Type : string
NB: Flexi-metadata Metadata is configured in "Configuration > Settings > MAM > Flexi-metadata" and compiled from "Media Library > Flexi-metadata".
Export parameters
This export allows the following parameters to be set and then [saved]:

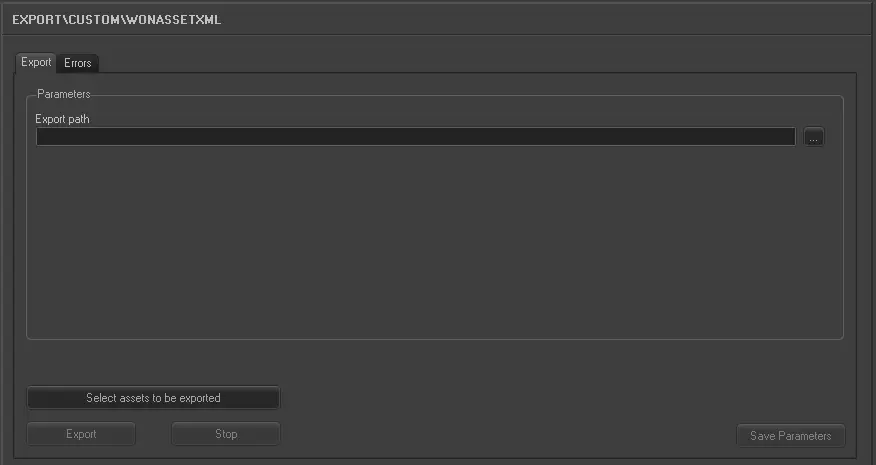

Export_custom_won_asset_xml

Parameters
•Export path: Indicate the path on which the exported file will be placed.
•Select assets to be exported: Open the asset search engine to allow selecting the asset(s) for which their linked files data will be exported.
NB: Multiple assets can be selected holding the CTRL and SHIFT keys while marking assets; selections are confirmed pressing the [Enter] key.
Launch the export
Once all parameters have been correctly set, just press the <Export> button to launch the export operation.
Sample exported file
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Pharos>
   <Material>
      <MatId>SBC032370</MatId>
      <TrackTypeLink>         <TrackTypeName>Video</TrackTypeName>
         <StateName>Ready for broadcasting</StateName>
      </TrackTypeLink>
      <Track>
         <TrackDefinition>
            <Position>1</Position>           <TrackTypeName>Video</TrackTypeName>
         </TrackDefinition>
         <Outcode>00:19:00:02</Outcode>
     <MediaName>Browse</MediaName>
         <Encoded>true</Encoded>
         <IngestDate>2013-12-20T11:59:59:517</IngestDate>
         <Incode>10:00:10:00</Incode>
      </Track>
      <Title>NARUTO Ep 141 "La Décision de Sakura"</Title>
 <MaterialType>ACQUISITION</MaterialType>
      <AspectRatio>12F12</AspectRatio>
      <Marker>
         <Absolute>10:00:10:00</Absolute>
  <Timecode>10:00:10:00</Timecode>
         <MarkerType>Start - Part 1</MarkerType>
  <RefInCode>10:00:00:00</RefInCode>
         <FrameRate>NDF25</FrameRate>
      </Marker>
      <Marker>
         <Absolute>10:10:10:00</Absolute>
  <Timecode>10:10:10:00</Timecode>
         <MarkerType>End - Part 1</MarkerType>
  <RefInCode>10:00:00:00</RefInCode>
         <FrameRate>NDF25</FrameRate>
      </Marker>
      <Marker>
         <Absolute>10:11:00:00</Absolute>
  <Timecode>10:11:00:00</Timecode>
         <MarkerType>Start - Part 2</MarkerType>
  <RefInCode>10:00:00:00</RefInCode>
         <FrameRate>NDF25</FrameRate>
      </Marker>
      <Marker>
         <Absolute>10:20:00:00</Absolute>
  <Timecode>10:20:00:00</Timecode>
         <MarkerType>End - Part 2</MarkerType>
  <RefInCode>10:00:00:00</RefInCode>
         <FrameRate>NDF25</FrameRate>
      </Marker>
      <Duration>00:19:00:02</Duration>
   </Material>
</Pharos>
NB: The <MaterialType>  tag will contain the "external name" of the asset type (e.g. programme) when available; otherwise it will contain the asset Etere type (e.g. local production).
