84.4.5.18 STANDARD > IMAGINE > VISION

Import Scope
Imagine Vision Import allows you to import any schedules generated by the Imagine H-Class Vision scheduling program.
§There are primary events and secondary events
§Every line represents an event
§There are two types of lines: Header Record and Detail Record
Importing parameters
In order to use this import function, it is required to specify:

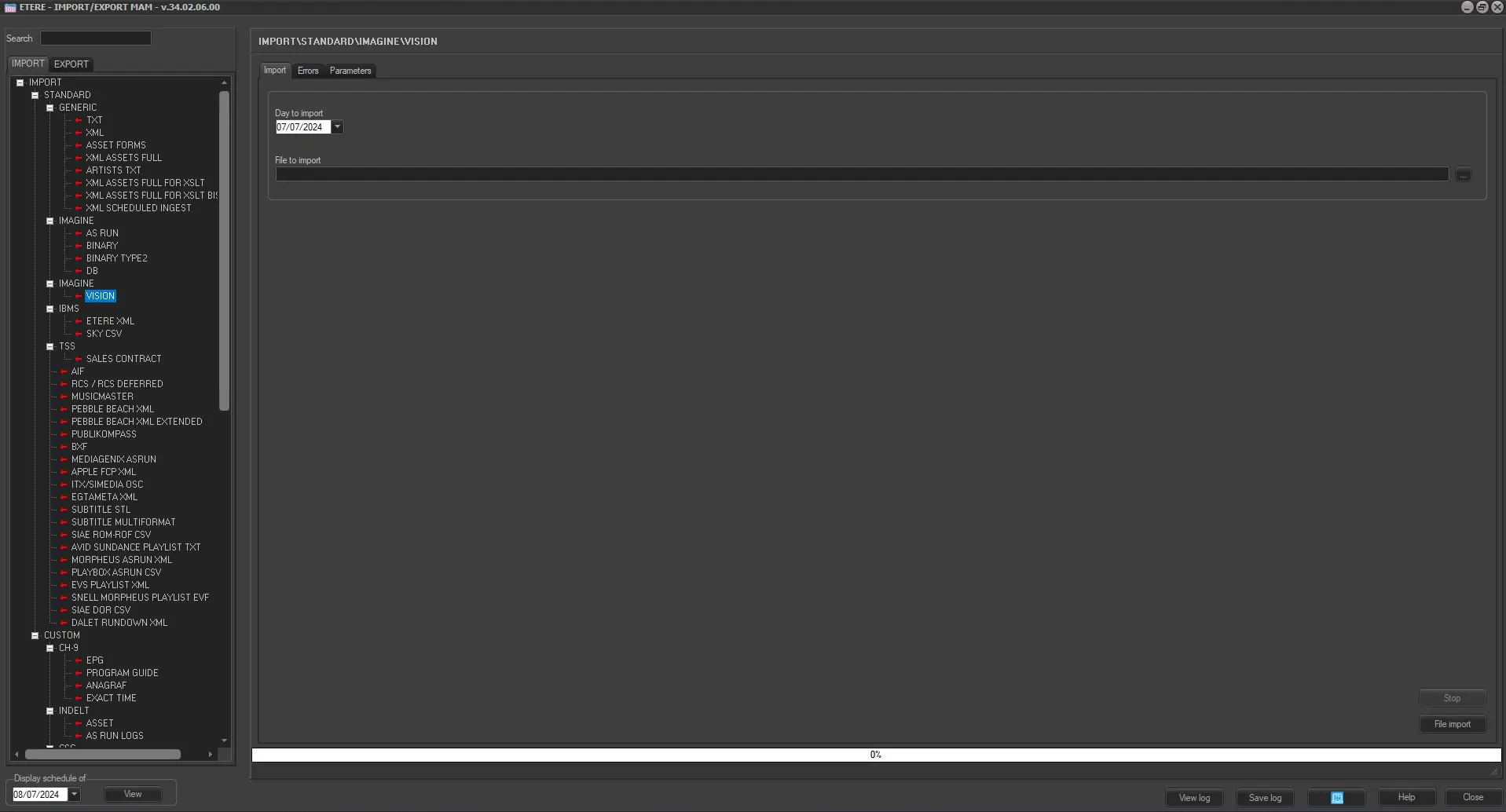

Import_standard_harris_version

•Day to import: Specify the schedule day to import and the respective file to be imported.
•File to Import: Browse and select the folder where files to be imported will be stored.

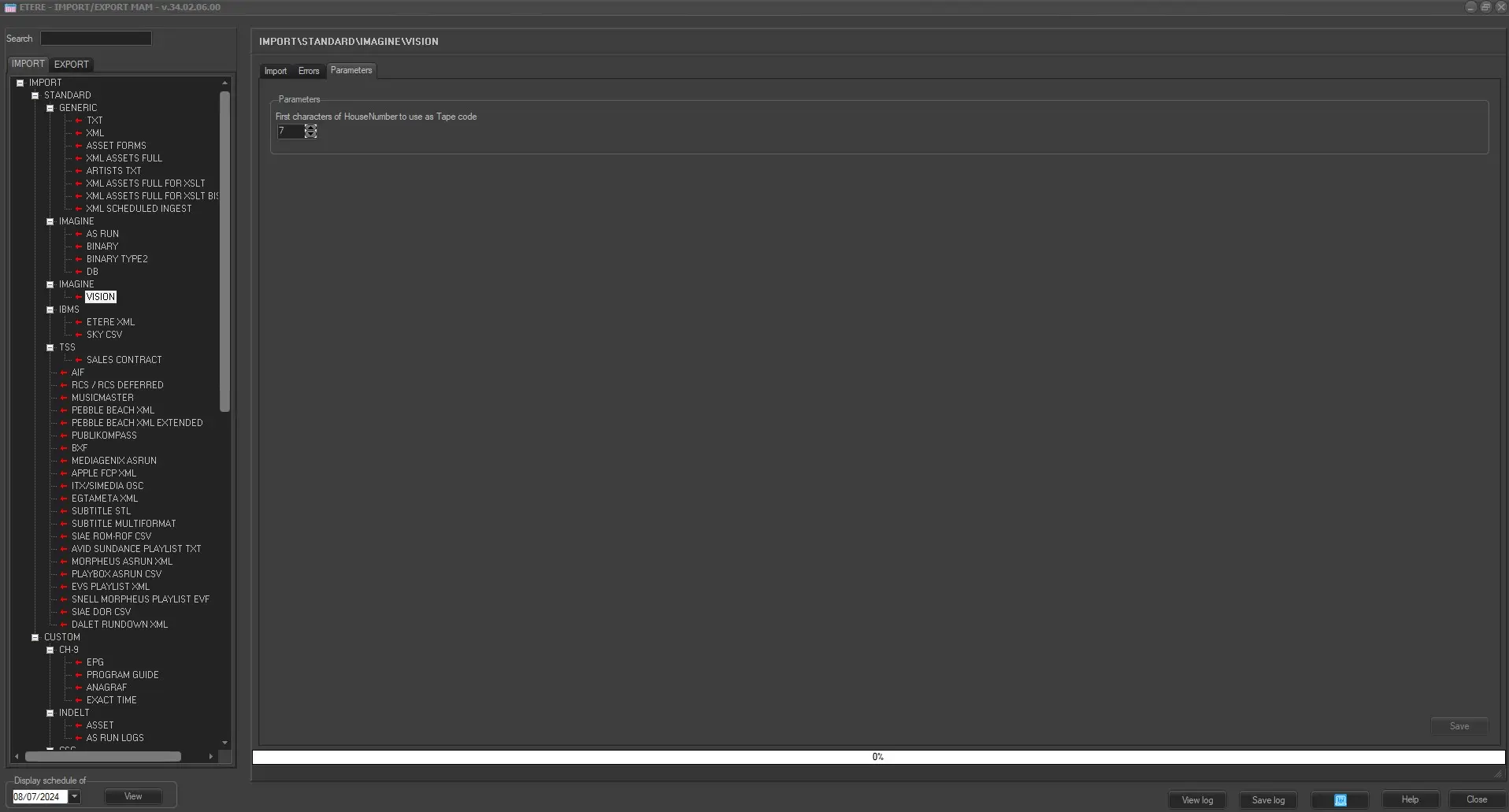

Import_standard_harris_version_1

•First characters of HouseNumber to use as Tape code: Specify how many initial characters of the HouseNumber must be considered as the tape code (default is set at 7).
Launch the import
Once the import has been configured, it can be started just by pressing the <File Import> button, once the import has finished, it will be possible to display the schedule of the related day to verify and/or approve the import operation.
