84.4.5.52 CUSTOM > CSC > PHOTO XML

Import scope
The custom CSC Photo XML import allows to import photos into the Etere database, this by reading a .XML file containing information relative to a single photo (one file will be related to each photo). A single asset will be created for each photo, as well as a tape with a duration of one frame.
Import parameters
This import module requires the following parameters to be set in order to be correctly used:

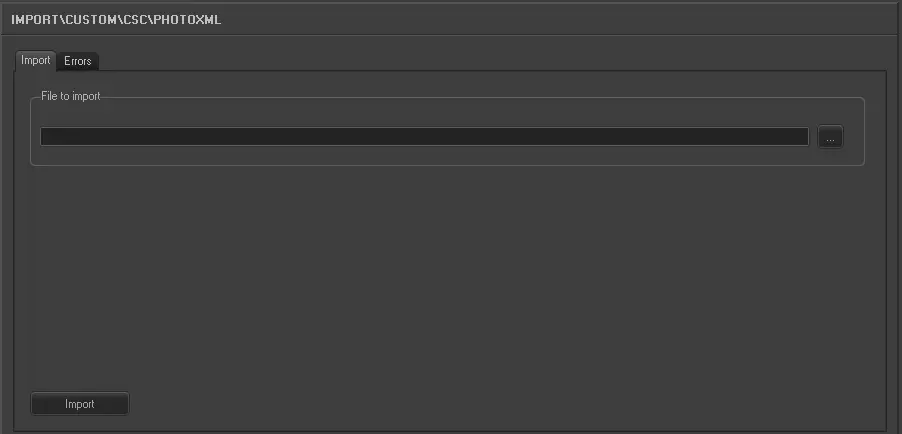

Import_custom_csc_photo_xml

•File to import: Browse for the file from which data will be imported, only .XML files will be displayed since they are the only supported. The file to be imported will have the following format: INCZ-yyyymmdd-nnn.xml where:
- yyyy: The import year,
- mm: The import month,
- dd: The import day,
- nnn: The import file number.
Launch the import
Once the import has been configured, it can be started just by pressing the <Import> button, once the import has finished, it will be possible to display the schedule of the related day to verify and/or approve the import operation.
Sample file to import
The file to be imported using this method will have to the following structure in order to be correctly imported:
<?xml version="1.0" encoding="UTF-8"?>
<x:xmpmeta xmlns:x="adobe:ns:meta/" x:xmptk="XMP Core 4.4.0-Exiv2">
 <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#">
  <rdf:Description rdf:about=""
 xmlns:dc="http://purl.org/dc/elements/1.1/"
 xmlns:exif="http://ns.adobe.com/exif/1.0/"
 xmlns:photoshop="http://ns.adobe.com/photoshop/1.0/"
 xmlns:tiff="http://ns.adobe.com/tiff/1.0/"
 xmlns:xmp="http://ns.adobe.com/xap/1.0/"
 xmlns:xmpMM="http://ns.adobe.com/xap/1.0/mm/"
 xmlns:StudioLine="http://ns.StudioLine.net/StudioLine/1.0/"
   dc:format="image/jpeg"
   exif:ColorSpace="1"  exif:NativeDigest="36864,40960,40961,37121,37122,40962,40963,37510,40964,36867,36868,33434,33437,34850,34852,34855,34856,37377,37378,37379,37380,37381,37382,37383,37384,37385,37386,37396,41483,41484,41486,41487,41488,41492,41493,41495,41728,41729,41730,41985,41986,41987,41988,41989,41990,41991,41992,41993,41994,41995,41996,42016,0,2,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,20,22,23,24,25,26,27,28,30;39220C85539294669E2E76AFB44820"
   exif:ExifVersion="0210"
   exif:FlashpixVersion="0100"
   exif:CompressedBitsPerPixel="4/1"
   exif:PixelXDimension="3081"
   exif:PixelYDimension="2008"
   exif:DateTimeDigitized="2003-05-04T10:08:25.11"
   exif:ExposureTime="10/1250"
   exif:FNumber="32/10"
   exif:ExposureProgram="1"
   exif:ExposureBiasValue="0/6"
   exif:MaxApertureValue="30/10"
   exif:MeteringMode="5"
   exif:FocalLength="1700/10"
   exif:SensingMethod="2"
   exif:FileSource="3"
   exif:SceneType="1"
   exif:CFAPattern="0 2 0 2 2 1 1 0"
   exif:GPSVersionID="2.0.0.0"
   exif:DateTimeOriginal="2003-05-03T11:12:57+02:00"
   photoshop:History=""
   photoshop:City="ROCCA DI PAPA (ITALIA) - CENTRO DELL'OPERA"
   photoshop:Credit="CSC Audiovisivi"
   photoshop:Source="CD20030503"
   photoshop:Headline="INCONTRO DEI DELEGATI DELL'OPERA IN ZONA"  tiff:NativeDigest="256,257,258,259,262,274,277,284,530,531,282,283,296,301,318,319,529,532,306,270,271,272,305,315,33432;55AC2FAE85681DE485AAB4F6D78A81B7"
   tiff:ResolutionUnit="2"
   tiff:YCbCrPositioning="2"
   tiff:DateTime="2005-09-28T10:19:41.11"
   tiff:Make="NIKON CORPORATION"
   tiff:Model="NIKON D1X"
   tiff:XResolution="300/1"
   tiff:YResolution="300/1"
   tiff:ImageWidth="3081"
   tiff:ImageLength="2008"
   tiff:Orientation="1"
   tiff:Software="StudioLine Photo Classic Versione 3.70"
   xmp:CreateDate="2005-09-28T10:19:41+02:00"
   xmp:CreatorTool="Adobe Photoshop CS Macintosh"
   xmp:ModifyDate="2005-09-28T10:19:41+02:00"
   xmp:MetadataDate="2010-09-02T18:12:47.312+02:00"  xmpMM:DocumentID="adobe:docid:photoshop:fd718546-306d-11da-90dc-97c7f514f9bd"
   xmpMM:InstanceID="uuid:1f899ca4-306e-11da-90dc-97c7f514f9bd"
   StudioLine:Name="INCZ-20030503-003"
   StudioLine:Description="CHIARA PARLA DIETRO IL TAVOLO"
   StudioLine:FileName="INCZ-20030503- 003"
   StudioLine:ResolutionDPI="300"
   StudioLine:XP.Title="CHIARA PARLA DIETRO IL TAVOLO"
   StudioLine:XP.Comments="03/05/2003, INCONTRO DEI DELEGATI DELL'OPERA IN ZONA - AGGIORNAMENTO INSIEME PER L'EUROPA"
   StudioLine:XP.Keywords="INSIEME PER L'EUROPA, RESPONSABILI DI ZONA"  StudioLine:VarUnresolved.EXIF.Copyright="%%COPYRIGHT%%"  StudioLine:VarUnresolved.ITC.ByLine="%%EXIF.Artist%%"  StudioLine:VarUnresolved.ITC.CopyrightNotice="%%COPYRIGHT%%"
   StudioLine:Var.Genere="SERVIZIO"
   StudioLine:Var.Tipo_Etere="GEN"  StudioLine:Var.INTEGRAZIONE_AL_TITOLO="PIANO MEDIO"
   StudioLine:Var.Ubicazione="Armadio 01 - CSC VIDEO"  StudioLine:Var.RACCOLTA="CD20030503">
   <dc:description>
    <rdf:Alt>
     <rdf:li xml:lang="x-default">FOTO VIRTUALi CONTENUTE IN CD ROM                               </rdf:li>
    </rdf:Alt>
   </dc:description>
   <dc:subject>
    <rdf:Bag>
     <rdf:li>INSIEME PER L'EUROPA</rdf:li>
     <rdf:li> RESPONSABILI DI ZONA</rdf:li>
    </rdf:Bag>
   </dc:subject>
   <exif:ComponentsConfiguration>
    <rdf:Seq>
     <rdf:li>1</rdf:li>
     <rdf:li>2</rdf:li>
     <rdf:li>3</rdf:li>
     <rdf:li>0</rdf:li>
    </rdf:Seq>
   </exif:ComponentsConfiguration>
  </rdf:Description>
 </rdf:RDF>
</x:xmpmeta>
