69.1.2.17 SIPRA ASRUN

Export Scope
The F90 - SIPRA ASRUN export, implemented for SIPRA, creates a XML file containing the schedule of the selected days.

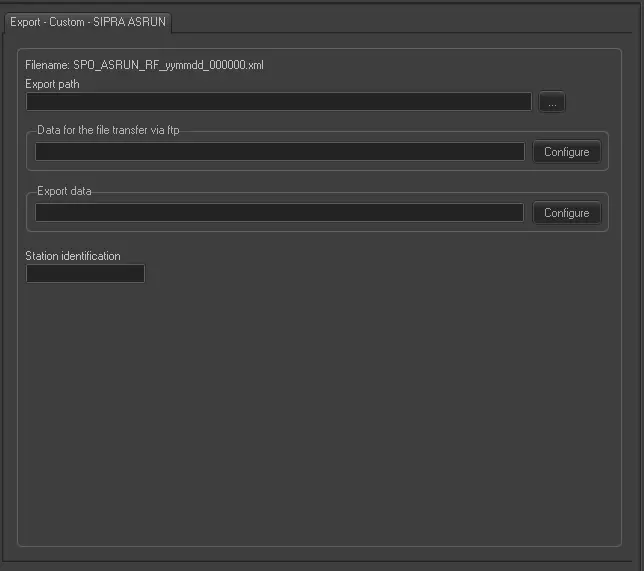

Export Parameters
This export needs the following parameters to be configured:
Export - Custom - SIPRA ASRUN

Filename - The name of the exported file would have the format SPO_ASRUN_RF_yymmdd_hhmmss.XML
Export Path - Indicate the path the exported file would be placed.
Data for the file transfer via FTP - Click on the Configure button and define the FTP parameters as described in Configure Data File Transfer via FTP chapter.
Export data - Opens the Configure Export window to specify the days and the frequency to be exported.
Station Identification - Name of the station to be inserted in the XML file inside the <RETE_SIPRA> tag.
NB: Notice that only events with the property TPALINSE.STATUS<>'I' are exported, the code of Commercial Events starts with 'D'; the main exported fields are <SPOT_ID> and <STATO_MO>.

Scheduling related export
This export doesn't require any configuration under the Etere Scheduling module.
