59.5.7.5 Customized: Type 01

Report Description

This section permits defining the first of up to ten different reports that allow operators to create custom asset-related reports that can fulfil specific requirements completely.

Report Filters

All the parameters that permit a detailed report generation have been spread across seven different tabs to allow a more manageable configuration. By default, all filters are disabled (i.e., either blank or unselected); it is enough to configure at least one parameter inside to enable them. Available filters include:

•Type

It permits filtering events by their type; if no specific type is checked (by default), all kinds will be included in the report. Otherwise, only selected types will be retrieved.

•Stations enabled

Select the station(s) from which scheduled data will be retrieved.

•Code

The code area permits, as its name suggests, narrowing the retrieved results by specifying any of the following filters concerning the code field:

- Starts with Enter the string with which the asset's codes must begin to be retrieved in the report (e.g., code like 'test*'),

- Between Insert two values, and only those assets whose code is comprehended between them will be retrieved (e.g., code between '500' and '600'),

- Contains: To be retrieved, assets' code must contain the string inserted here (e.g., code like 'test'),

- It doesn't contain: To be retrieved, assets' code must NOT contain the string inserted here (e.g., code not like 'test'),

- Empty: Only the empty events will be retrieved (e.g., code = '').

•Title

As its name suggests, this area permits narrowing the retrieved results by specifying the following filters concerning the title field. Its filters work precisely as the code ones.

•Expiry date

Indicate the date interval on which the expiry date of retrieved assets must be comprehended; it is possible to define various methods, including  days from a given custom date or from one of the standard filters (i.e., 'current day', 'this week', 'next week', 'current month', 'current year', 'today's month date', 'today's  year day', 'previous month', 'previous year', 'last 30 days, 'following 30 days' or 'all dates'),

•Main Server

As its name suggests, this area permits narrowing the retrieved results by specifying the following filters concerning the main server field. Its filters work precisely as the code ones.

•Last Update

Indicate the time interval on which the last update date of retrieved assets must be comprehended. It is possible to define any of the following methods:

- Interval: It permits to specify if the days to be included will be taken from a given custom date or one of the standard filters (i.e., 'current day', 'this week', 'next week', 'current month', 'current year', 'today's month date', 'today's  year day', 'previous month', 'previous year', 'last 30 days, 'following 30 days' or 'all dates'),

- Time: Indicate if the report will include the whole day or only a specific time range.

•Sort by

Specify here the field on which the printed content will be ordered. Available fields include code, description and duration.

•Properties

This tab permits the customization of the layout of the report by selecting the complementary information that will be displayed on it. You can also decide to include some standard info, such as:

- Print date: Enable it to display the date (and time) in each page footer,

- Pages Number: If active, a progressive number will be displayed in the footer on all pages across the report,

- Operator: It is the login name of the person who performs the report,

- Station name: The name of the station from which the report is being performed,

- Multiple lines text: Enable this option to continue printing a detail in another line instead of truncating it (as by default).

- Interline: Enable this option to increase the space between lines to 1.5 cm (one-and-one-half); by default -when disabled- this space is set to 1 cm (single).

- Columns: It permits to specify the database fields that will be included in the report. The column headers will be displayed at the top of the columns window, as shown in the information. It is possible to arrange them just by using drag and drop.

NB: These column headers are guided by the information on the video files (EOM, SOM, Proxy file, Bit rate, Asset ID, etc.).

Display Active Filters

In the middle of the form, a summarizing list will be displayed containing all the filters enabled for the current report:

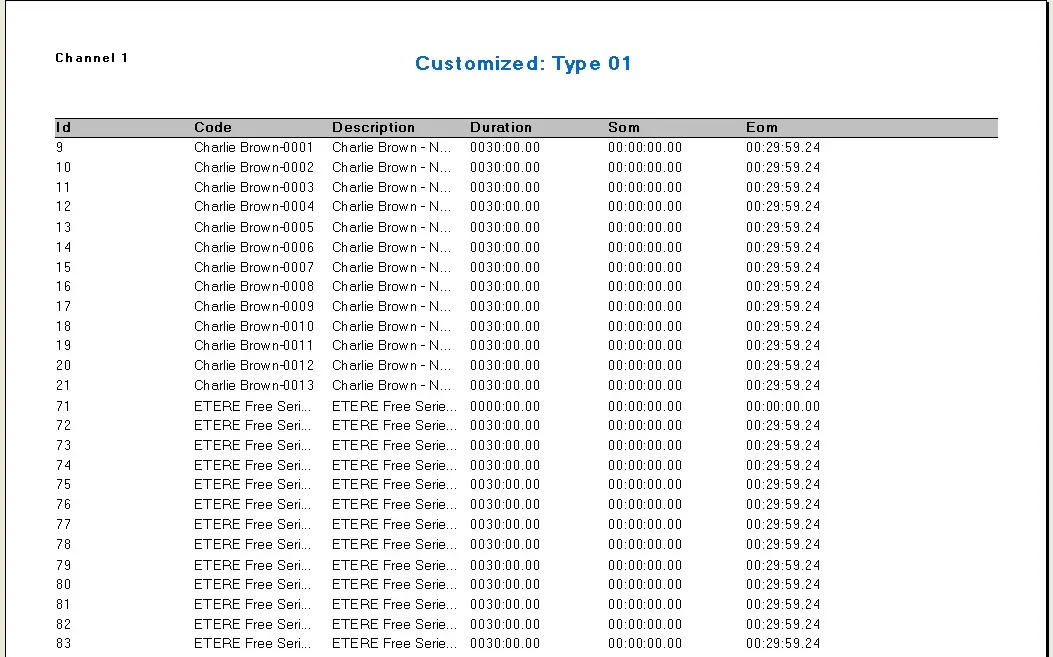

Report Preview

The [Settings] permits configuring the page layout of the outgoing document; once filters and settings have been set, it will be possible to select between displaying a preview using the related [Preview] button or printing the document directly using the [Report] button. Please note that some reports permit the export of the generated document in the most common formats (pdf, CSV, doc, xls, XML, etc) just by using the [Export] button.

Customized_Type_01
