68.3.4 Preview

Preview

This control allows outputting of a video containing the content of a Multiviewer display. Its behaviour is defined by its properties:

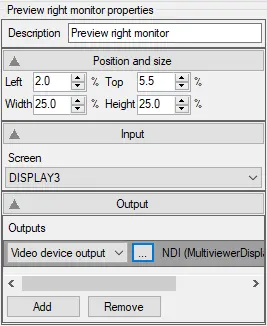

preview_properties

Description: allows changing the control description from the default one.

Position and size: allows positioning and sizing of the control on the layout.

Input: the windows screen containing the Multiviewer display to be transmitted.

Outputs: this section allows adding\removing of monitor outputs. Clicking on the Add button, it's possible to configure multiple outputs. Network stream and video device output kinds are available. Clicking on the button beside the droplist, different properties will be shown, according to the kind of output selected.

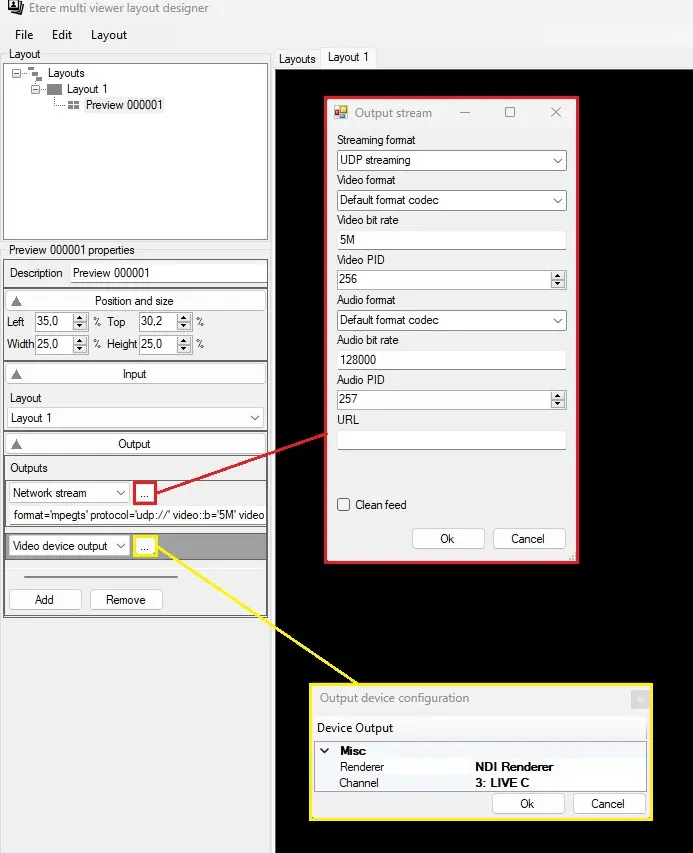

outputs

Outputs can be removed selecting the one to delete and clicking on Remove button.
