59.2.43.22 Default Flexi-metadata Configuration

If you are setting up a new database environment, and there is no SMPTE database configured in the system, the Flexi-metadata setting looks similar to the figure shown below:

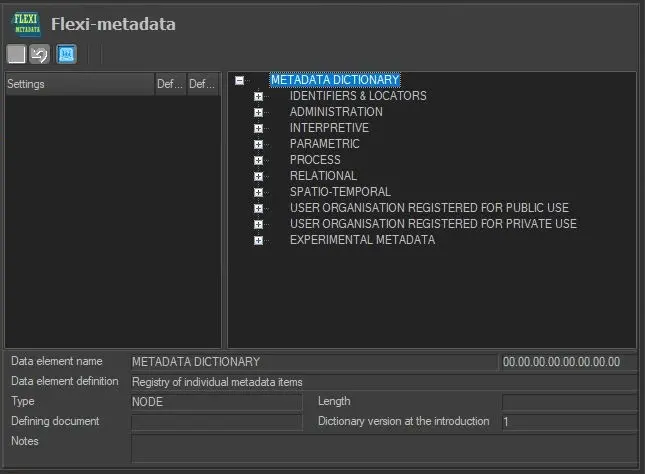

Flexi-metadata 1

From Etere released version 27.5 and higher, you can create default configuration settings for Flexi-metadata simply by executing system maintenance tasks.  Upon completion, two default Flexi-metadata configurations, "Asset Metadata" and "File Info", would be added to the settings that include all commonly required fields acquired by Flexi-metadata.

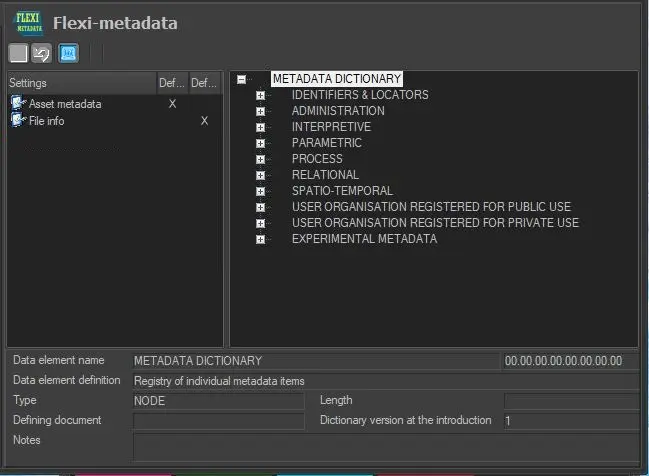

Flexi-metadata 2

In the default configuration settings "Asset metadata", all required fields pertaining to asset metadata are included in the settings. Fields defined in the default configuration have:

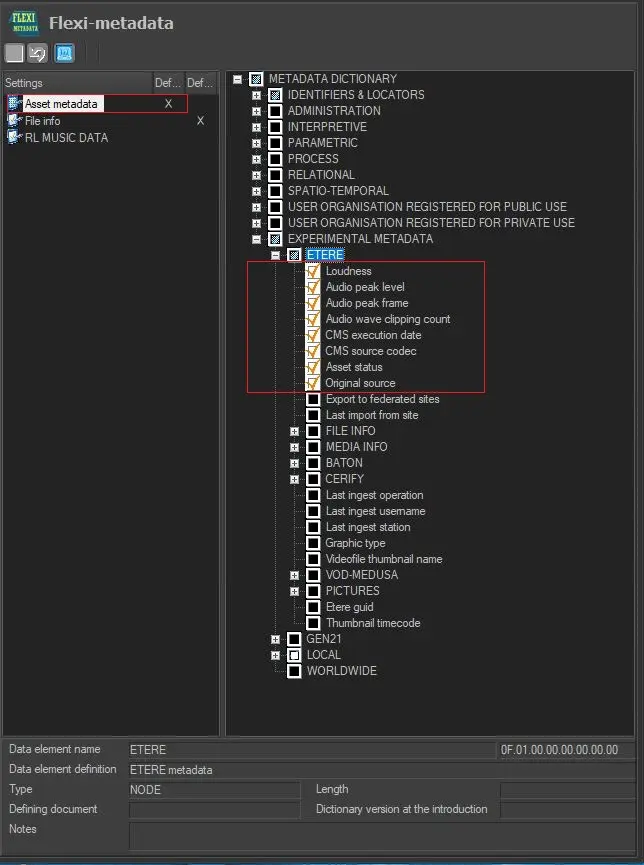

Flexi-metadata 3

Default settings for Asset Metadata
- Loudness
- Audio peak level
- Audio peak frame
- Audio wave clipping count
- CMS execution date
- CMS source codec
- Asset status
- Original source

In default configuration settings "File Info", all related media information fields include:

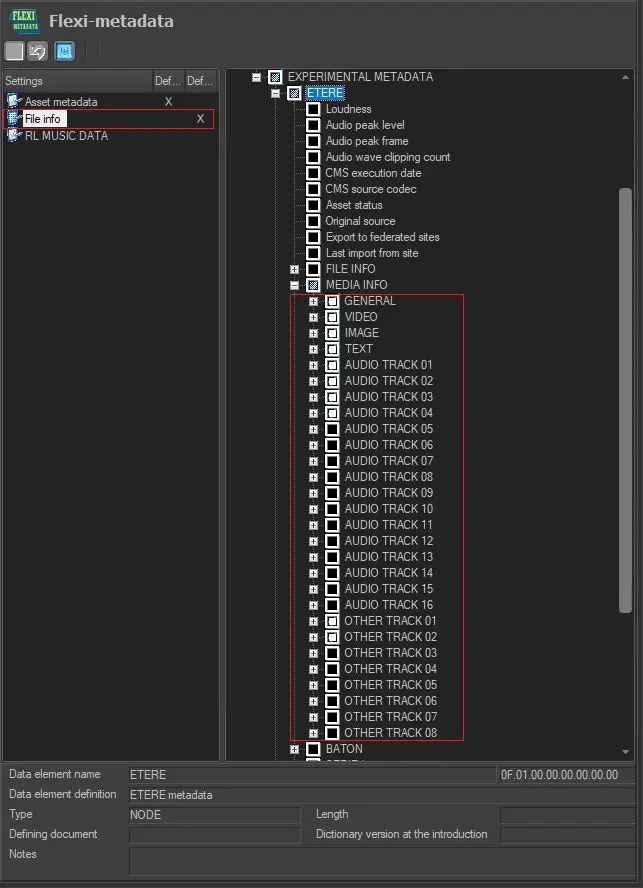

Flexi-metadata 4

Default settings for File Info
- General: Video count
- Video: Format (video)
- Audio Track 01-04 : Format (track xx)
- Other Track: Format (other track xx)
- Image: Bit depth (image)
- Text: Duration (image)
- General: Audio count
- Video : Format info (video)
- Audio Track 01-04 : Duration (track xx)
- Other Track: Timecode first frame (other track xx)
- Image:  Format commercial (image)
- Text: Format commercial (text)
- General: Video format list
- Video : Format commercial (video)
- Audio Track 01-04 : Bit rate (track xx)
- Image :  Height (image)
- Text : Language (text)
- General: Audio format list
- Video:  Format profile (video)
- Audio Track 01-04:  Bit rate mode (track xx)
- Image :  Width (image)
- General: Format
- Video:  Format setting (video)
- Audio Track 01-04: Sampling rate (track xx)
- Image:  Display aspect ratio (image)
- General: Format version
- Video:  Duration (video)
- Audio Track 01-04 :  Frame count (track xx)
- Image:  Pixel aspect ratio (image)
- General: Codec string
- Video :  Bit rate (video)
- Audio Track 01-04 :  Bit depth (track xx)
- General : File size
- Video :  Width (video) - Stream size (track xx)
- General: Duration
- Video:  Height (video)
- Audio Track 01-04 :  Channels (track xx)
- General: Overall bit rate
- Video:  Pixel aspect ratio (video)
- Audio Track 01-04 :  Channel positions (track xx)
- General: Stream size
- Video: Display aspect ratio (video)
- Audio Track 01-04 : Channel positions string2 (track xx)
- General: Title
- Video: Display aspect ratio string (video)
- Audio Track 01-04 : Title (track xx)
- General: Encoded by
- Video: Frame rate (video)
- Audio Track 01-04: Format commercial (track xx)
- General: Comment
- Video: Frame count (video)
- Audio Track 01-04:  Language (track xx)
- General: File extension
- Video:  Standard (video)
- Audio Track 01-04:  Samples per frame (track xx)
- General: Format commercial
- Video :  Colour space (video)
- Video :  Chroma subsampling (video)
- Video :   Bit depth (video)
- Video :   Scan type (video)
- Video:   Bits pixel frame (video)
- Video:   Stream size (video)
- Video:   Colour description present (video)
- Video:   Colour primaries (video)
- Where xx=track number
