85.2.14.1 Configuration

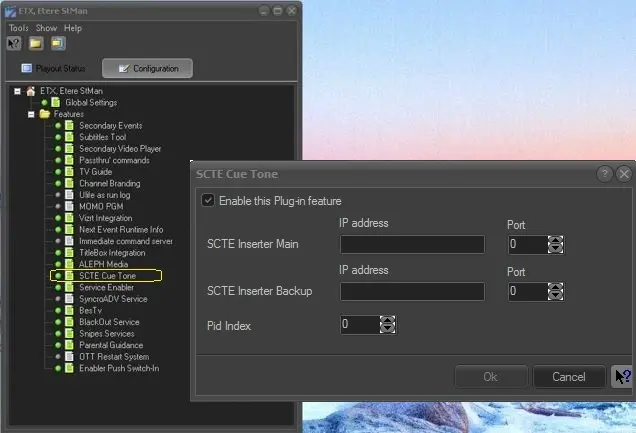

SCTE Cue Tone

Parameter - Enable this plug-in feature
Description : Enable this checkbox to activate the plug-in feature.
Parameter - SCTE Inserter Main
Description : Provide the IP address and port number of Main SCTE inserter for sending cue tone to MUX server.
Parameter - SCTE Inserter Backup
Description : If there is Backup inserter configured, specify the IP address of Backup Inserter and port number to be used for sending cue tone to MUX server when the Main Inserter failed to do so.
Parameter - Pid Index
Description : Set the index of the package identifier.
If you have 2 SCTE Inserters, you can define the IP address for Backup inserter, or leave the Backup address as blank to setup as active-passive mode.  In active-passive mode, only the Main inserter would send commands, while the Backup inserter remain in standby mode.

NB: SCTE104 has been implemented for Harmonic and Xvp-3901
