72.6.7 Story and Audio Over

Story and Audio over

Story and Audio over

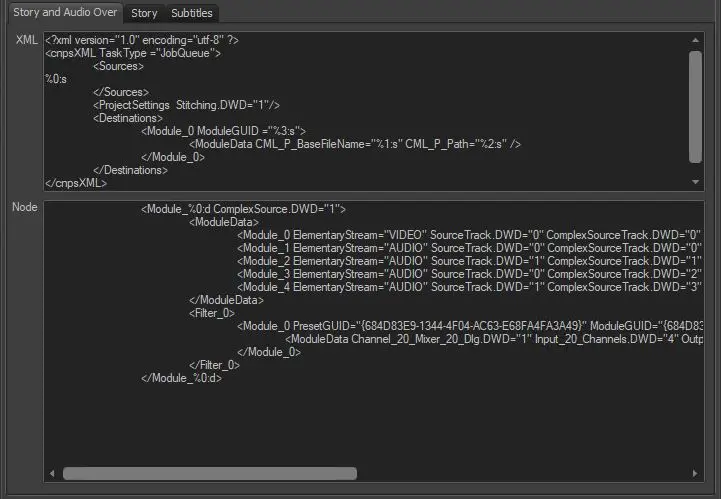

In the XML section is found the xml file to be sent to Rhozet for conforming of the story. In the ModuleGUID parameter it will indicated the profile needed to generate the final file on the basis of your needs:
<asset-code>.xml
<?xml version="1.0" encoding="utf-8" ?>
<cnpsXML TaskType ="JobQueue">
   <Sources>
     %0:s
   </Sources>
   <ProjectSettings  Stitching.DWD="1"/>
   <Destinations>
      <Module_0 ModuleGUID ="{E10E642E-A959-4358-8FB1-9DBC87260E1A}">
         <ModuleData CML_P_BaseFileName="%1:s" CML_P_Path="%2:s" />
      </Module_0>
   </Destinations>
</cnpsXML>

- %0:d : The list of segments that compose the story.

- %1:s : The filename without extension.

- %2:d :  The path on which create the file.

NB: The rhozet profile (i.e. ModuleGUID) used by default is the {E10E642E-A959-4358-8FB1-9DBC87260E1A}. Please refer to the "Common Filters for Transcoding" chapter to see a list of other most commonly used filters.

The Node section contains a portion of the xml file to be sent to Rhozet, through this section are inserted those segments which form the story. Once all segments are generated, this part of the xml will be inserted in the node <source>:
      <Module_%0:d ComplexSource.DWD="1">
         <ModuleData>
            <Module_0 ElementaryStream="VIDEO" SourceTrack.DWD="0" ComplexSourceTrack.DWD="0"
Filename="%1:s"  Inpoint.QWD="%2:d"  Outpoint.QWD="%3:d" />
            <Module_1 ElementaryStream="AUDIO" SourceTrack.DWD="0" ComplexSourceTrack.DWD="0"
Filename="%4:s"  Inpoint.QWD="%5:d"  Outpoint.QWD="%6:d" />
            <Module_2 ElementaryStream="AUDIO" SourceTrack.DWD="1" ComplexSourceTrack.DWD="1"
Filename="%7:s"  Inpoint.QWD="%8:d"  Outpoint.QWD="%9:d" />
            <Module_3 ElementaryStream="AUDIO" SourceTrack.DWD="0" ComplexSourceTrack.DWD="2"
Filename="%10:s" Inpoint.QWD="%11:d" Outpoint.QWD="%12:d"/>
            <Module_4 ElementaryStream="AUDIO" SourceTrack.DWD="1" ComplexSourceTrack.DWD="3"
Filename="%13:s" Inpoint.QWD="%14:d" Outpoint.QWD="%15:d"/>
         </ModuleData>
         <Filter_0>
            <Module_0 PresetGUID="{684D83E9-1344-4F04-AC63-E68FA4FA3A49}"
ModuleGUID="{684D83E9-1344-4F04-AC63-E68FA4FA3A49}">
               <ModuleData Channel_20_Mixer_20_Dlg.DWD="1" Input_20_Channels.DWD="4"
Output_20_Type.DWD="2" Average_20_Values.DWD="0" Input_20_0="%16:d 0" Input_20_1="0 %17:d"
Input_20_2="%18:d 0" Input_20_3="0 %19:d" />
            </Module_0>
         </Filter_0>
      </Module_%0:d>

- %0:d : Segment number (starting from zero).

- %1:s : The translated filename.

- %2:d :The SOM of the segment that will composed the story.

- %3:d : The EOM of the segment that will composed the story.
