53 Etere SCTE CueTone Server

An SCTE-104 inserter inserts commands (e.g., splices, cuetones, and Pgm descriptors) into TV broadcasts, managing ad placements and content changes. It places cues for ads, indicates where to insert content, and provides program details. It ensures smooth transitions between segments, allowing targeted ads and local content without interrupting viewing.

To schedule SCTE104 markers via Executive Editor, follow chapter 92.2.14

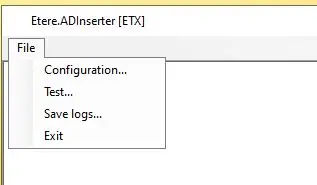

SCTE markers' time and duration are shown in the main form. The file tab contains a menu with the Configuration, a tester, Save logs and Exit buttons

AD_Inserter

Install

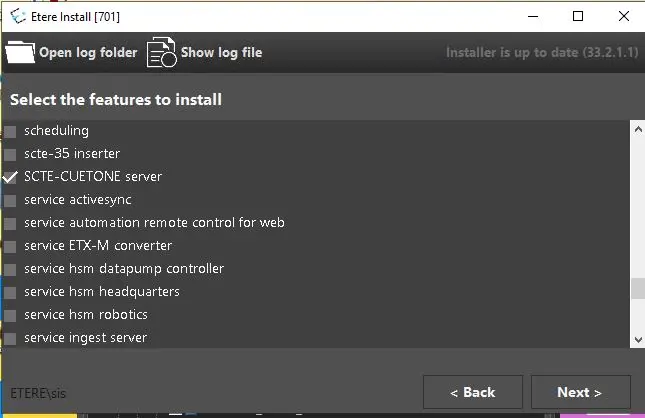

Choose SCTE CueTone Server from the installer and press Next to install the SCTE104 Inserter
scte_cuetone_inserter

Configuration

Open the module from Start\Etere\Etere SCTE Cuetone Server to start configuring and the same module to create.

•Communication Insert communication Port for Etere to insert the SCTE104

•Ad Inserter: Choose between the currently supported devices (GV XVP 3901, SCTE104 Harmonic and SCTE-35 ML). Each device has a different configuration submenus, and their respective images are shown below

•Logs: Set the number and size of the logs

Specific Configurations

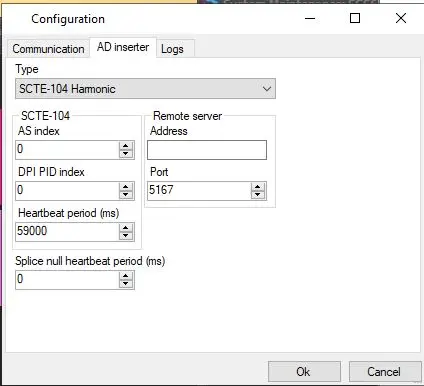

Harmonic

DPI Pid Index: set DPI Index. DPI index in SCTE-104 manages precise insertion points for digital content like ads within broadcasts

AS Index: set AS Index. AS Index in SCTE-104 identifies splice events for accurate ad insertion or content replacement

Splice Null Heartbeat Period: Splice null or heartbeat in SCTE-104 is a placeholder message used to maintain synchronization in the broadcast stream during idle periods

Remote Server and Port: Refers to the IP and port of the Inserter machine where Etere connects to

scte-104_Harmonics_config

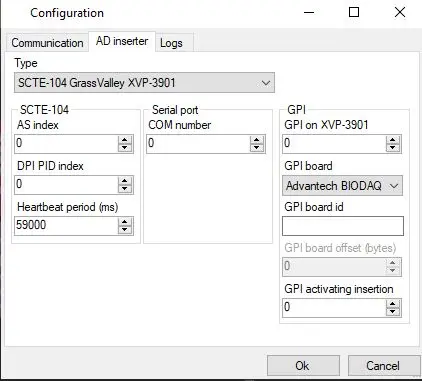

GV XVP 3901

DPI Pid Index: set DPI Index. DPI index in SCTE-104 manages precise insertion points for digital content like ads within broadcasts

AS Index: set AS Index. AS Index in SCTE-104 identifies splice events for accurate ad insertion or content replacement

Heartbeat Period: Splice null or heartbeat in SCTE-104 is a placeholder message used to maintain synchronization in the broadcast stream during idle periods

Serial Port: Refers to the RS422 Com port of the Inserter machine where Etere connects to

GPI:  This machine lets you config a GPI; here are the settings

XVP-3901_cfg

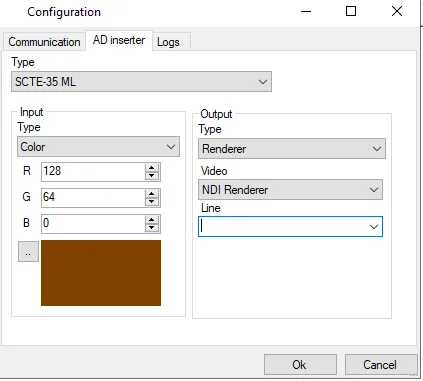

SCTE-35 ML

Input: choose the type between color, file (insert the file path), live (insert the video source and the line) , URL

output: choose the type between Renderer (insert the video source and the live), and writer (insert the configuration and the URL)

SCTE35_ML
