85.2.9.1 Configuration

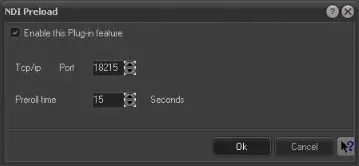

Upon activated, enable the option “Enable this Plugin feature” and define the parameters

Enable this Plugin feature

Parameter - TCP/ IP Port
Description : Set the network port for Automation to receive the preload command.
The value is calculated automatically based on the station number with the following rule:
- 18000 + station number + 5.

For example. station 1 use port 18015, station 2 use port 18025, station 3 use port 18035, so on and so forth.

Parameter - Preroll time
Description : In this parameter, indicate the time (in seconds) needed to send the preload command before the live event.

Upon completion, click the <OK> button to save the settings and return to STMan main menu.
In the environment where STMan main and clone co-exist with Automation main and clone:
•The STMan main would send the command to Automation main.
•The STMan clone would send the command to Automation clone.
•Both Automation main and clone use the same port to receive the command.
 A sample of XML command sent to Automation (use live channel 10) is listed below.
<NDIPreload Id="0" Support="0LIVE00010" Channel="10" StartTime="" ErrorCode="0"
ErrorMessage="" />
