59.5.8.27 Summary Final Transmission Schedule

Report Description

The Summary Final Transmission Schedule report allows the generation of a document containing the events transmitted within a certain period, indicating their scheduled time, duration, linked asset code, exploded part, parental classification, category, close captions, spot code, booking range, event type, and live channel.

Report Filters

All the parameters that permit detailed report generation have been spread across seven different tabs to allow for easier configuration. By default, all filters are disabled (i.e., either blank or unselected); to enable them, it is enough to configure at least one parameter inside. Available filters include:

•Date

Indicate the time criteria to be used for filtering events; it is possible to define any of the following methods:

- Interval: It permits to specify if the days to be included will be taken from a given custom date or one of the standard filters (i.e., 'current day,' 'this week,' 'next week,' 'current month,' 'current year,' 'today's month date,' 'today's  year day,' 'previous month,' 'the previous year,' 'last 30 days, 'following 30 days' or 'all dates'),

- Time: Indicate if the report will include the whole day scheduling or only a specific time range.

•Object

Indicate the event type (s) that will be used to filter the events included in the report. Use the 'hide groups and system types' option to display only those types defined by the station and hide those created by default Etere.

•Properties

This tab permits to customize the layout of the report by selecting the complementary information that will be displayed on it. You can also decide to include some standard info, such as:

- Print date: Enable it to display the date (and time) in each page footer,

- Pages Number: If active, a progressive number will be displayed in the footer on all pages across the report,

- Operator: It is the login name of the person who performs the report,

- Station name: The name of the station from which the report is being performed,

- Multiple lines text: Enable this option to continue printing a detail in another line instead of truncating it (as by default).

- Interline: Enable this option to increase the space between lines to 1.5 cm (one-and-one-half); by default -when disabled- this space is set to 1 cm (single).

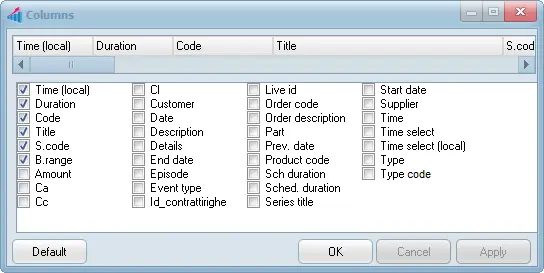

- Columns: You can select the database fields to be included in the display columns in the report.
automation_columns_in_the_report

Display Active Filters

In the middle of the form, a summarizing list will be displayed containing all the filters enabled for the current report:
3712_Display_Active_Filters

Report Preview

The [Settings] permits configuring the page layout of the outgoing document; once filters and settings have been set, it will be possible to select between displaying a preview using the related [Preview] button or printing the document directly using the [Report] button. Please note that some reports permit the export of the generated document in the most common formats (pdf, CSV, doc, xls, XML, etc) just by using the [Export] button.
Automation_Summary_Final_Transmission_Schedule
