66.4.5 Image

Image Overlay Features

• Supported file formats: BMP (with alpha), JPEG, TGA (with alpha), GIF (animated, with alpha), TIFF, WMF, EXIF and PNG (with alpha)
• Support for image sequences
• Resizing of images during playback.

In order tos tart using the Text Layers and tools, perform the following straightforward steps

1. Start ETX Toolbox Playlist, tick on <CG Enabled> checkbox and select <CG Editor>.
2. To input text, go to ItemListForm.

   Cg_editor_properties

3. Select 'Image', drag and drop to Preview window.

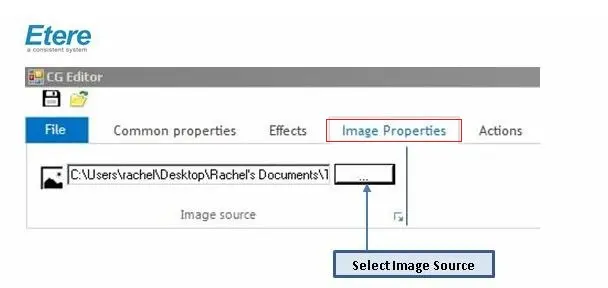

4. Select the path where the image file is stored and you are able to edit the images using various tabs;
5. Select file to preview and click on <Open> to confirm selection.

   open_image


Image items use external images for overlaying. It can be files (*.jpg, *.gif, *.bmp etc.) or images from memory added by its handles.

Following all the related Tools and Properties available on the Etere CG Editor Toolbar:

• Common Properties

  common_prop_toolbar

  In the examples below, the graphics can be positioned using the combined and common properties:

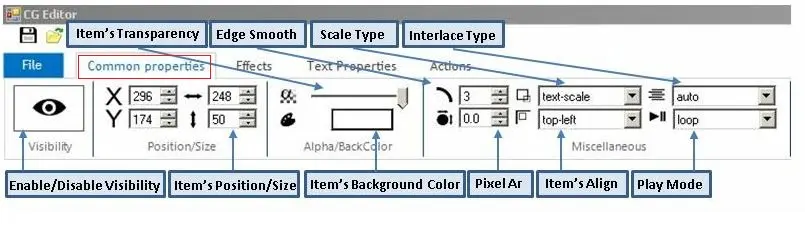

  Test185

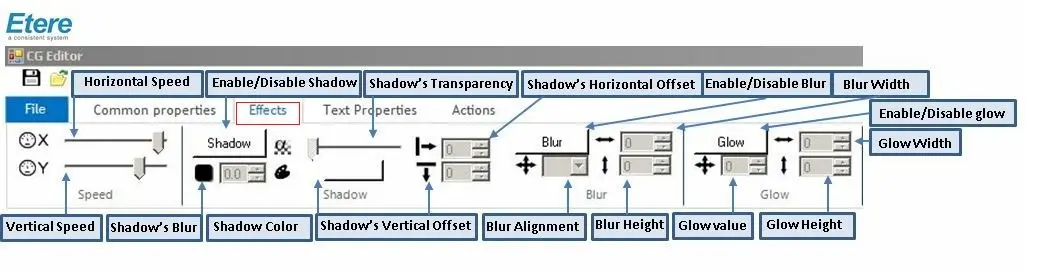

  Test186

  • Example 1:

    Position the graphics with its exact size and display at the top of the preview window.

    • Scale Type=exact-fit
    • Item’s Align=top

    exact_fit_top

  • Example 2:

    Position the graphics with no scale structure and align the graphics at the top of the preview window.

    • Scale Type=no-scale
    • Item’s Align=top

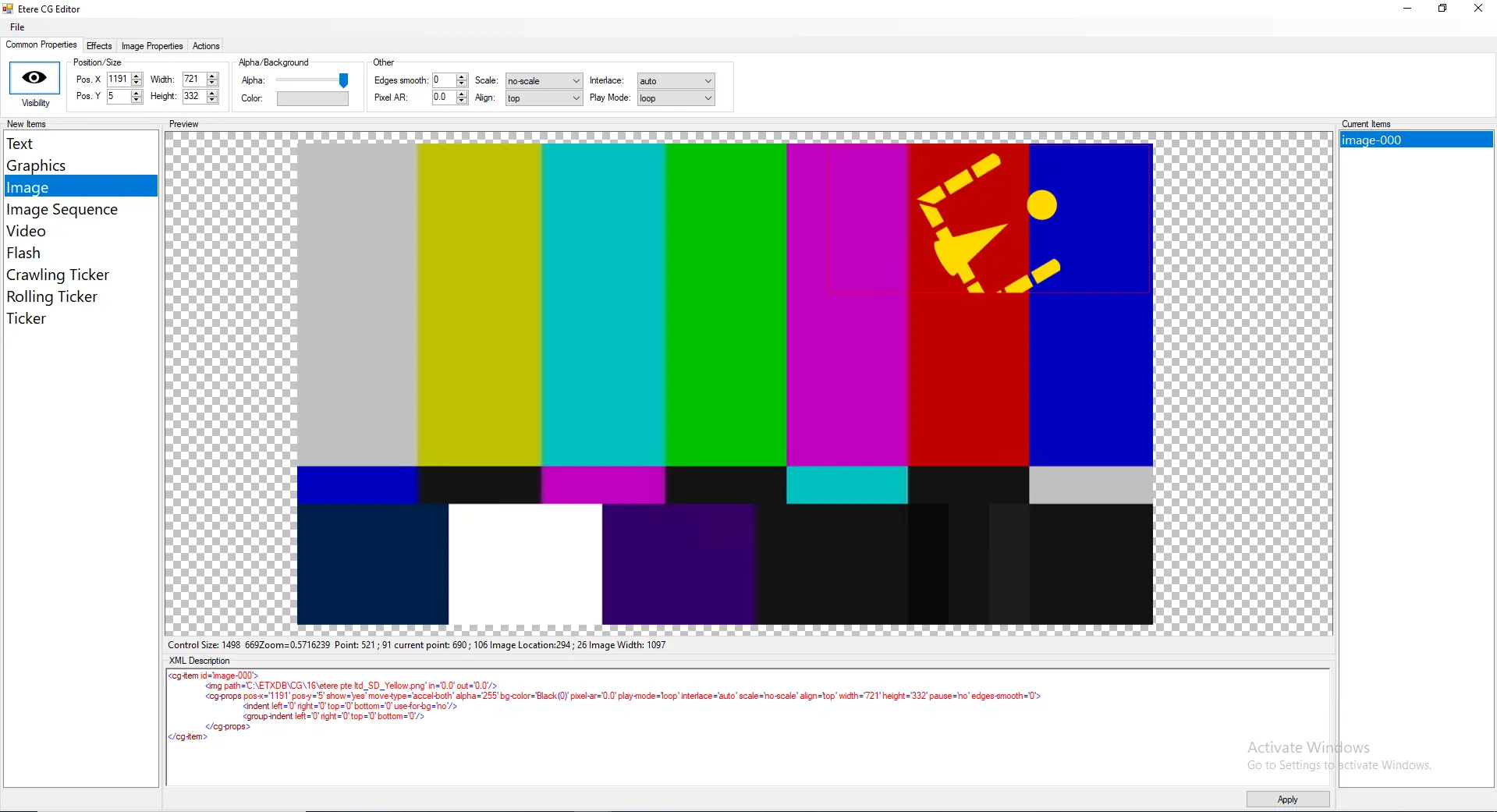

    no_scale_top

  • Example 3:

    Position the graphics with no scale structure and display the graphics at the centre of the preview window.


    • Scale Type=no-scale
    • Item’s Align=center

    no_scale_center

• Effects

  effects_toolbar

• Actions

  actions_toolbar

Following all the behavior related to the Actions Toolbar Buttons:

•  Group

  Group button allows you to group more than one item types as one selection. Item type can be text, graphic, image, flash, image sequence or tickers. Grouping of items allows you to modify them with a single action.

  To group items, select "Group" on the Actions task bar. Next, click and drag your mouse cursor to create a selection box over the items.

  The first time you group a set of items, you will be able to make modifications to the selected list but the items will still be displayed separately under the Properties toolbar, see below:

  To merge the selected items as a group, select the "Group" button again.


  group_btn

  Once the selected items are grouped, it displayed as single item under the Properties toolbar. You can make modification to the group by selecting the required group under the Properties toolbar.


  grouped_layers

• Ungroup

  Ungroup button allows you to separate items inside a merged group. Ungrouping of items allows you to modify the items individually.

  To ungroup items, select "Ungroup" on the Actions task bar, click and drag your mouse cursor to create a selection box over the group.

  ungroup_btn

  Once the items are ungrouped, you are able to modify them individually under the Properties toolbar.

  ungrouped_layers

• Layer Up

  Layer Up button allows you to move items up to the next layer when there are more than 2 layers.
  To execute Layer Up feature on item, select Layer Up on the Actions task bar. Next, click and drag the mouse cursor to create a selection box over the item. Select Layer Up to move selected item on top of the next layer. Continue this step if you would like to move another layer up.  The diagram below shows the Layer Up effect on the text item.

  layer_up_btn

• Layer Down

  Layer Down button allows you to move items down to the next layer when there are more than 2 layers.

  To apply Layer Down feature on item, select Layer Down on the Actions task bar. Next, click and drag the mouse cursor to create a selection box over the item. Select Layer Down to move selected item on top of the next layer. Continue this step if you would like to move another layer down.  The diagram below shows the Layer Down effect on the text item.

  layer_down_btn

• Bring to Front

  Bring To Front button allows you to move items to the topmost layer. The difference between this feature and the Layer Up feature is that this feature only allows you to move items to the topmost layer and not to the next available layer.

  To execute Bring To Front feature on item, select Bring To Front on the Actions task bar. Next, click and drag the mouse cursor to create a selection box over the item. Select Bring To Front to move selected item to the topmost layer. The diagram below shows the Bring To Front effect on the text item.

  bring2front_btn

• Send To back

  Send To Back button allows you to move items to the bottommost layer. The difference between this feature and the Layer Down feature is that this feature only allows you to move items to the bottom most layer and not to the next available layer.

  To execute Send To Back feature on item, select Send To Back on the Actions task bar. Next, click and drag your mouse cursor to create a selection box over the item. Select Send To Back to move selected item to the  bottom most layer. The diagram below shows the Send To Back effect on the text item.

  send2back_btn

• Align Lefts

  Align Lefts button allows you to adjust the alignment of selected item(s) to the left of the frame. The diagram below shows the Align Lefts effect on the text and graphic items.

  align_left_btn

• Align Centers

  Align Centers button allows you to adjust the alignment of selected item(s) to the Center of the frame. The diagram below shows the Align Centers effect on the text and graphic items.

  align_center_btn

• Align Rights


  Align Rights button allows you to adjust the alignment of selected item(s) to the Right of the frame. The diagram below shows the Align Rights effect on the text and graphic items.

  align_center_btn

  Alternatively, Text selection can also be modified using the XML Description, and click the <Apply> button to import changes.
