59.5.7.21 Storage Days

Report Description

The Storage Days report allows printing a document containing all the selected assets with their respective scheduled 'deleting day' and 'storage day'.

Report Filters

All the parameters that permit detailed report generation have been spread across seven different tabs to allow for a more straightforward configuration. By default, all filters are disabled (i.e., either blank or unselected); it is enough to configure at least one parameter inside to enable them. Available filters include:

•Code

The code area permits, as its name suggests, narrowing the retrieved results by specifying any of the following filters concerning the code field:

- Starts with Enter the string with which asset's codes must begin to be retrieved in the report (e.g., code like 'test*'),

- Between Insert two values, and only those assets whose code is comprehended between them will be retrieved (e.g., code between '500' and '600'),

- Contains: To be retrieved, assets' code must contain the string inserted here (e.g., code like 'test'),

- It doesn't contain: To be retrieved, assets' code must NOT contain the string inserted here (e.g., code not like 'test'),

- Empty: Only those events in which the code is empty will be retrieved (e.g., code = '').

•Description

As with the code, the description field permits the retrieval of only those assets whose description field matches (entirely or partially) with the selected filter:

- Starts with Enter the string with which the asset's description must begin to be retrieved in the report (e.g., a description like 'test*'),

- Between Insert two values, and only those assets whose description is comprehended between them will be retrieved (e.g., the description between '50' and '60'),

- Contains: To be retrieved, the asset's description field must contain the string inserted here (e.g., a description like 'test'),

- It doesn't contain: To be retrieved, events' description must NOT contain the string inserted here (e.g., description not like 'test'),

- Empty: Only those assets whose description field is empty will be retrieved (e.g., description = '').

•Sort by

Specify here the field on which the printed content will be ordered. Available fields include code, description and duration.

•Properties

This tab permits the customization of the layout of the report by selecting the complementary information that will be displayed on it. You can also decide to include some standard info, such as:

- Print date: Enable it to display the date (and time) in each page footer,

- Pages Number: If active, a progressive number will be displayed in the footer on all pages across the report,

- Operator: It is the login name of the person who performs the report,

- Station name: The name of the station from which the report is being performed,

- Multiple lines text: Enable this option to continue printing a detail in another line instead of truncating it (as by default).

- Interline: Enable this option to increase the space between lines to 1.5 cm (one-and-one-half); by default -when disabled- this space is set to 1 cm (single).

- Columns: It permits to specify the database fields that will be included in the report. The column headers at the top of the columns window will be displayed as shown in the report. It is possible to arrange them just by using drag and drop.

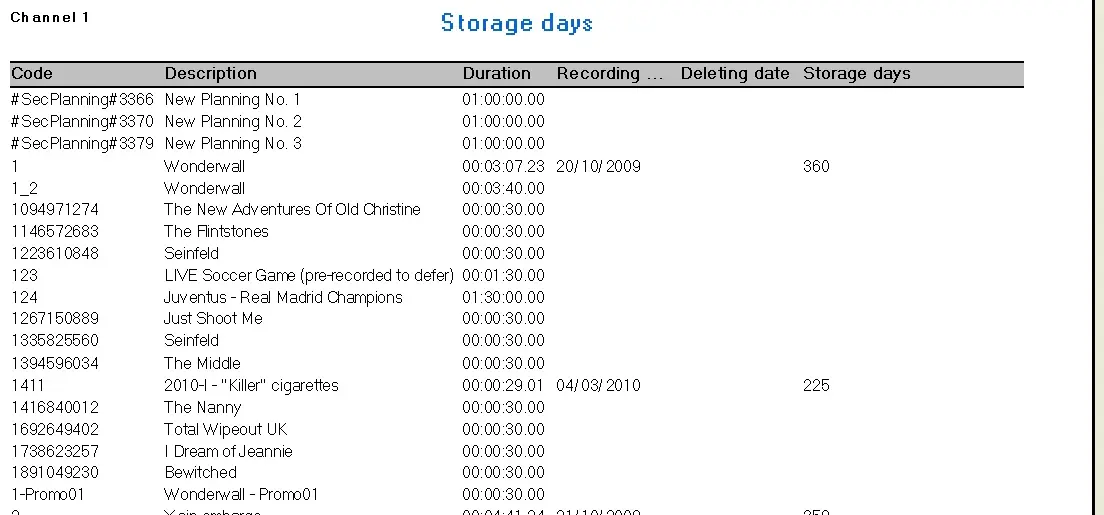

Report Preview

The [Settings] permits configuring the page layout of the outgoing document; once filters and settings have been set, it will be possible to select between displaying a preview using the related [Preview] button or printing the document directly using the [Report] button. Please note that some reports permit the export of the generated document in the most common formats (PDF, CSV, doc, xls, XML, etc) just by using the [Export] button.

assets_storage_days_preview
