91.5.2 Etere Scenes Editor

The chapter preview the existing Scene assets in Scene Editor.  You can refer to Etere Scenes Editor module for creating and editing scene assets in Etere system.
Scene sample # 1 – Playlist only

Radio-live_playout_scene_editor_1

•Select the scene asset from the search panel for preview.
•The scene asset name and source project file are indicated in the middle panel.
•There is no background color defined for the select asset.
•You can use option “Bring up” or “Send down” to position the scene in the Preview window.
•In the General section, you can align the scene position by setting the X and Y axis using the Location parameters.
•The scene asset is displayed in the right panel, where you can select an available video format to preview the graphics.
Scene sample # 2 – Playlist with 1 studio camera

Radio-live_playout_scene_editor_2

•Select the scene asset from the search panel for preview.
•The scene asset name and source project file are indicated in the middle panel.
•There is no background color defined for the select asset.
•You can use option “Bring up” or “Send down” to position the scene in the Preview window.
•The scene asset is displayed in the right panel, where you can select an available video format to preview the graphics.

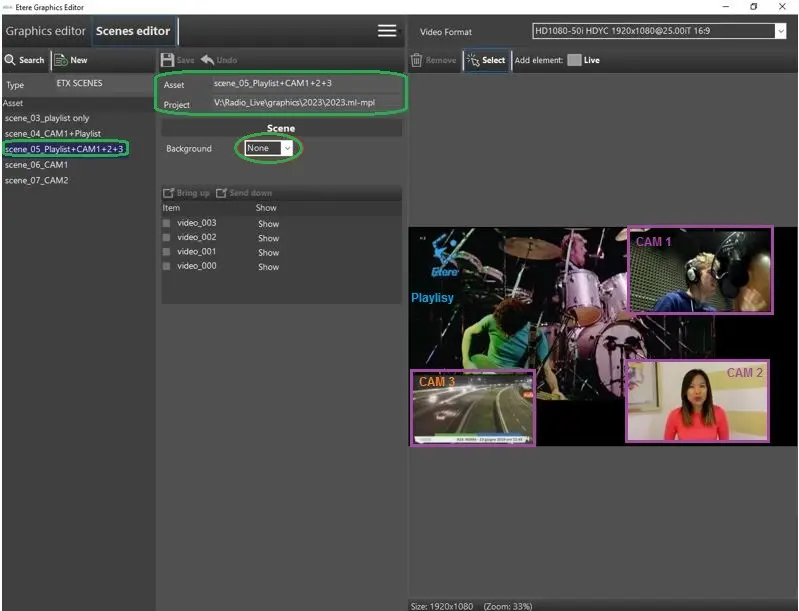

Scene sample # 3 – Playlist with 3 studio cameras

Radio-live_playout_scene_editor_3

•Select the scene asset from the search panel for preview.
•The scene asset name and source project file are indicated in the middle panel.
•There is no background color defined for the select asset.
•You can use option “Bring up” or “Send down” to position the scene in the Preview window.
•The scene asset is displayed in the right panel, where you can select an available video format to preview the graphics.

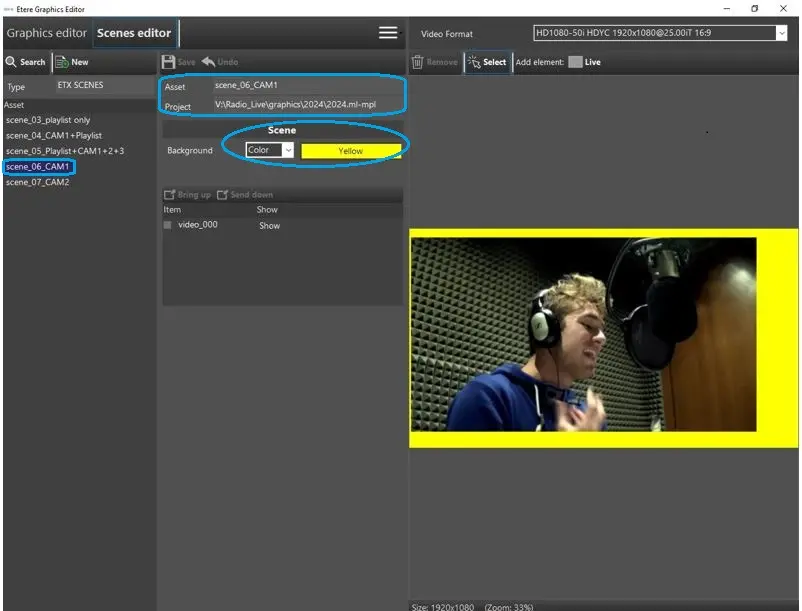

Scene sample # 4 – 1 studio camera

Radio-live_playout_scene_editor_4

•Select the scene asset from the search panel for preview.
•The scene asset name and source project file are indicated in the middle panel.
•The background color is the scene asset is defined (as Yellow).
•You can use option “Bring up” or “Send down” to position the scene in the Preview window.
•The scene asset is displayed in the right panel, where you can select an available video format to preview the graphics.
