93.2.1.14 MMS - Asset Data Export

MMS - ETERE ASSET DATA EXPORT is the action used by ETERE system to perform the exporting data related to the asset to which the T-workflow is attached.

MMS---Asset-Data-Export---General-Tab

MMS---Asset-Data-Export---Asset-Data-Export-Tab

To create this action, the following fields must be filled.

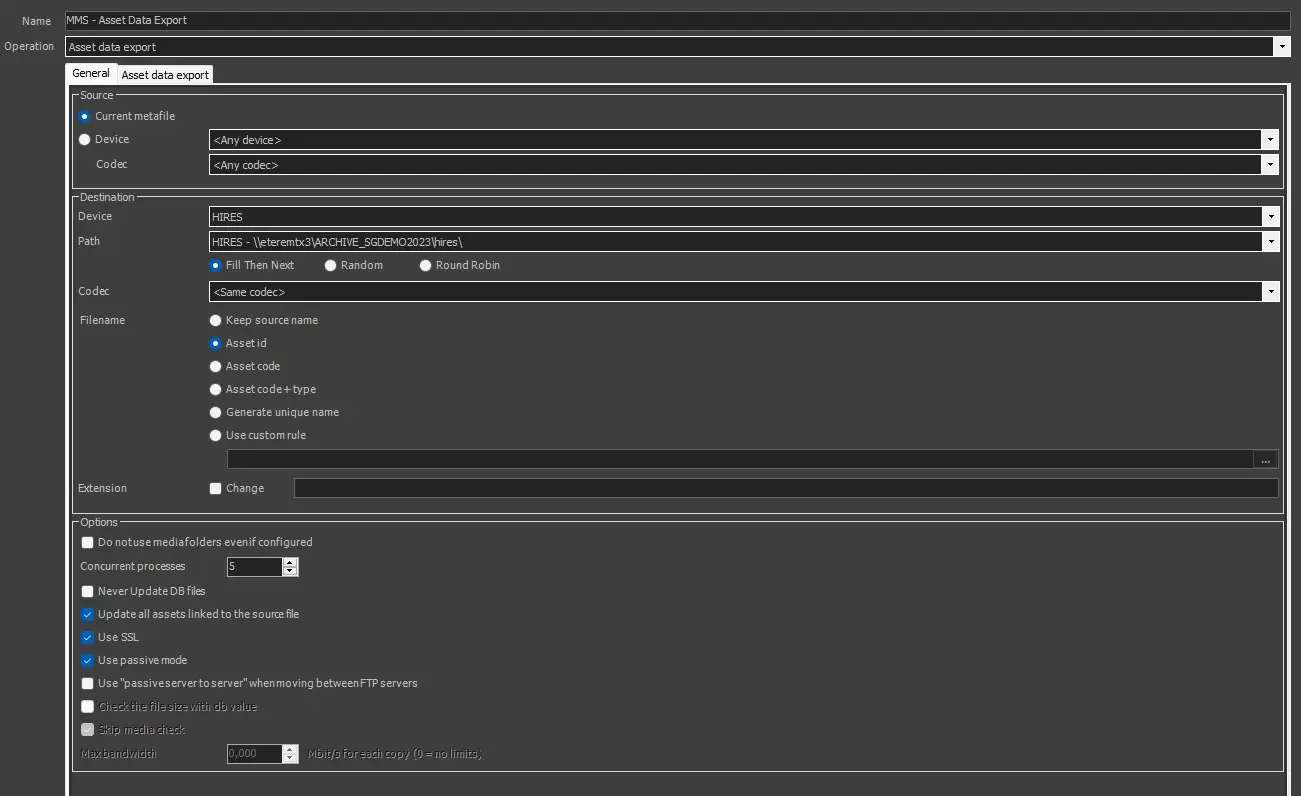

GENERAL TAB

Name: Give it a short name to identify the action.

Operation: Select "Asset data export" option.

SOURCE

Current metafile: Select this option to use the current metafile previously set.

Device/Codec: Select the source device and codec. If the metadevice contains multiple versions (codecs) of the file, select the codec you wish to copy or delete.

DESTINATION

Device: Select the destination device to which the files would be copied.

Path: If the selected cloud device contains more than one path, this parameter allows one to choose one of them as the destination path.

Codec: Select the destination codec where the files would be copied to.

Filename: Choose, among the following options, how the destination filename should be managed.

• Keep source name - Enable this option to maintain the file source file name in the destination. This option is enabled by default.
• Asset ID - Rename the file as the ID of the asset to which the wf is attached.
• Asset code - Rename the file as the asset code to which the wf is attached.
• Asset code + type - Rename the file as the code and the type of the asset to which the wf is attached.
• Generate a unique name - The physical file will be named using a unique identification (UID) automatically generated by a system algorithm.

By default, one unique name is generated for each metafile; therefore, in case the file is formed by multiple physical files (e.g. mpg, pd, vix), MMS will use the same UID for all files but different extensions; for instance, the files 2143.mpg, 2143. vix and 2143.pd will become 02BD0000000000000075.mpg, 02BD0000000000000075.vix, 02BD0000000000000075.pd.

If the metafile name is changed, MMS will use the same UID for both the file and the metafile, thus allowing the support of video servers on which video files are managed, maintaining a relationship between the name of metafiles and physical files.

• Use custom rules - The file will be named with a custom filename based on database references (e.g.  Flexi-metadata, asset data...) and free text.

Note: If in the RENAME action, a rule is used that must take the value from a flexi that contains characters not supported by the operating system (such as | \ / : * ") ETERE automatically replaces them with the character - (hyphen)

Extension: This parameter allows modification of the extension of the destination file, activating the "Change" flag and typing it in the field.

OPTIONS

Do not use media folders even if configured: Enable this option to ignore the translated path, even if it's configured.

Concurrent processes: Indicate the maximum number of actions that can be taken at the workstation simultaneously.

Never update DB files: The file won't be updated in the database.

Update all assets linked to the source file: If enabled (default), the copied file will be associated with all the asset forms linked to the source file.
Enabling this option is useful, for instance, when a single file is used by multiple assets (e.g. which transmit it overlaid with different logos); in this case, every time the file is copied, the new copy will be updated across all linked assets.
If disabled, the copied file will be associated only with the asset form for which the T-workflow has been launched.
Disabling this option is useful, for instance, when a single big file (e.g. a live feed recording) is used by multiple assets which partially retrieve a smaller file; in this case, only the support from which the partial retrieve has been executed will be updated.

Use SSL: Enable this option to use SSL (Secure Socket Layer) when saving the file in a destination path over the network. If enabled, the service media manager would attempt to complete the action using the following authentication steps in sequential order:

- FTP over TLS (Transport Layer Security)
- FTP over SSL (Secure Socket Layer)
- Plain FTP (without encryption)

If the FTP server supports SSL encryption, the Media Manager service will use a new set of libraries for copying files. Else, Plain FTP would be used.

Use passive mode: If checked, the FTP client will try to use passive mode for all file transfers (upload/download/move); otherwise (if disabled), the standard active way will be used.

Use "passive server to server" when moving between FTP servers: Enable this option if both source and destination devices use the FTP protocol and support 'passive mode'.

Check the file size with db value: If enabled, an additional check would be performed to compare the size of the copied physical file and the file size stored on db. This is useful to signal if the file has not been copied entirely into the destination folder. In this case, its file size differs from the original one, and this check can alert the operator by signalling an error in the wf. Not available for this kind of action.

Skip media check: Allow to avoid checking if the source file's device and codec match with the ones defined in the action. This is mandatory in the case of the Memory cut action because the Memory cut wf is attached to a new empty asset with no meta file, so the action would end in error if this parameter is disabled. Not available for this kind of action.

Maximum Bandwidth: The max. The bandwidth option is only supported for copies to limit the bandwidth used for data transfers.

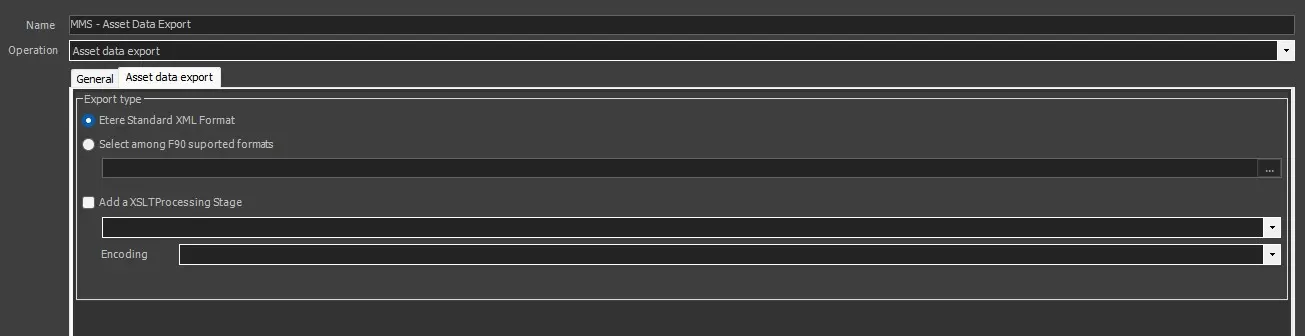

ASSET DATA EXPORT TAB

Etere Standard XML format: Select this option to export asset data in the standard format, the "XML Assets Full" export format.

Select among F90 supported formats: Select this option to export asset data in the following formats:

• Apple FCP XML - An XML file containing data of the asset related to the processing file.

• Louise Cognacq-Jay XML - An XML file containing asset data related to the processing file.

• Etere generic subtitle (STL) - STL file containing subtitles of the asset related to the processing file.

• Etere generic subtitle (PAC) - PAC file containing subtitles of the asset related to the processing file.

• CanalPlus XML - An XML file containing data regarding the processing file.

• Numericable XML - XML containing a set of user-selected assets.

• Orange XML - An XML file containing the catch-up schedules.

• J-One XML - An XML file containing data regarding the processing file.

• GAMEONE XML - An XML file containing the data related to the asset's linked files.

• Discovery custom asset XML - An XML file containing asset data related to the processing file.

• Won XML - An XML file containing WON's delivery data of the asset related to the processing file.

• Etere Generic Assets Full for XSLT - An XML file containing data of the asset related to the processing file, transformed using an XSL style sheet. In the Export Type dialogue, if "Etere generic asset full for XSLT" is selected, In the Parameters tab, you can select a station name (e.g. MAM, ETX, Nunzio, etc.) from the list and use the export parameters relative to the desired station.

• CanalPlus MultiLanguage XML - Contains the contractual and technical data, including subtitles data.

• Foxtel TELEVISION Asset XML - An XML file containing segment information of Foxtel Television (TV).

• Foxtel ASSOCIATED Asset XML - An XML file containing segment information of Foxtel Associated Media (AM).

• Foxtel FEATURE Asset XML - An XML file containing segment information of Foxtel Feature (FTR).
Note: Selecting Foxtel export types, a parameter will be available in the form. It allows one to select which EDL should be exported.

• Etere Generic Asset Full - Export assets and relevant fields to an XML file.

• DALET for ABS-CBN asset xml - Export an XML file containing the assets playlist based on four different scenarios.

• Orbit custom asset XML - Export the asset to an XML file named the asset code.

• Discovery custom asset 3rdParty XML - Export an XML file containing all data related to a specific asset.

• Rai CDT XML - Export the CDT data from the Tapeless system to the Trade system to be integrated with the current workflow .

• Mediaset archive asset xml - This process searches the Database for past assets; if there is an XML file with the same name as the asset code and with the same codec configured, it will export the assets from the path configured.

• Pluto XML - Export a TV program asset into an XML file. The exported events include episode and non-episode events.

• DEA custom asset XML - Export asset data and connect seasons of specific date into an XML file.

• WON2 XML - Allows generating an XML file containing a set of asset metadata required by Whats'ON system.

• RTB asset XML

Note: All exports are carried out based on "Scheduling > Import/Export" parameters. All subtitle-related exports allow specifying the language and the use of an offset. Some export types allow to choose which station the export parameters should be taken from.

Add an XSLT processing stage: Exported data will be automatically transformed using an XSL Transformation before being written in the output file. Select here which transformation should be applied and the encoding.
