69.1.1.9 Imagine Binary

Export Scope
The F90 – Imagine Binary export creates a list file containing the schedules of a specific date.

Export Parameters

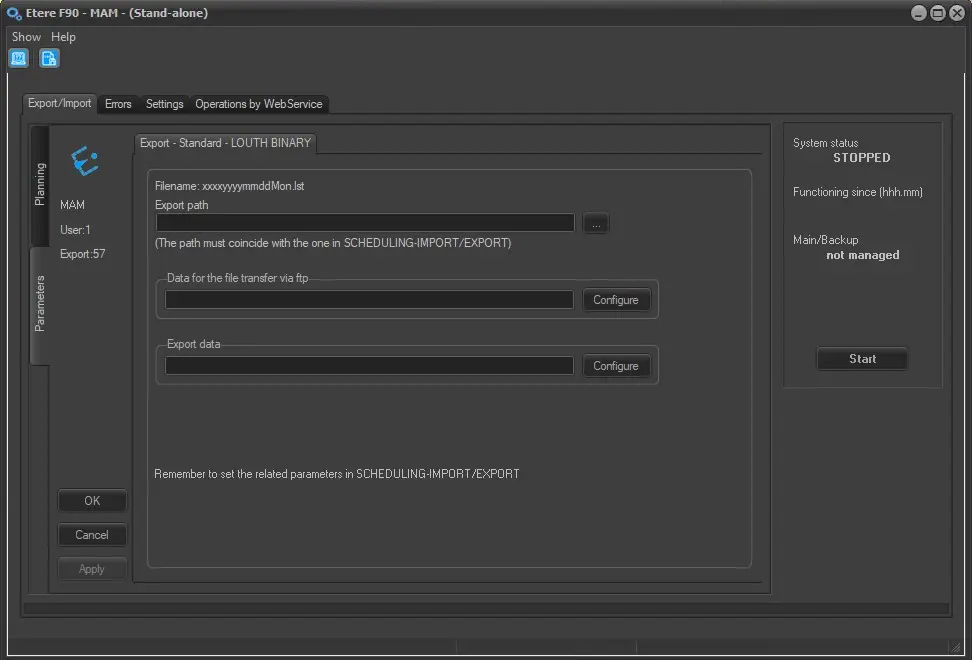

Export_Standard_LouthBinary

Export path - Specify the location path to create the exported list file. You can use the browse button to select a path in the network drive.
The exported file name format is xxxxyyyymmddMon.lst
Data for the file transfer via FTP - Click on the Configure button and define the FTP parameters described in the Configure Data File Transfer via FTP chapter.
Export data - Click on <Configure> to open the Configure Export window to specify the days to be exported and the frequency for the export.

Launch the Export
Once all the parameters are fulfilled, click <Start> to launch the export.

Scheduling related export
Set the same parameters in the Etere Scheduling > Import/Export > Imagine Binary and apply the changes once done.
