84.9.3 Graphic

The Graphic section is very useful for a quickly but accurate analysis of performed operations, allowing for example, to immediately find the day when specific assets have been copied or moved from a certain location just by viewing the graphic chart.

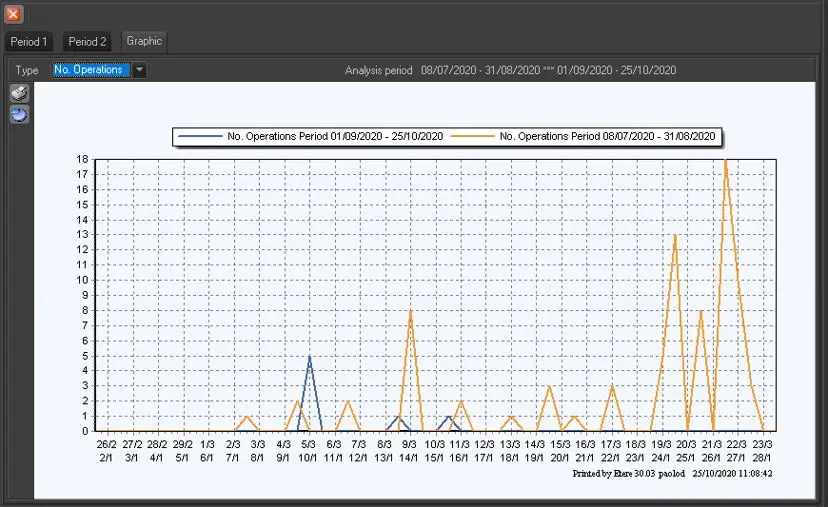

Under the Graphic tab a Graphic Statistic is available through a Line Chart used to interpolate between dates and a specific parameter (i.e.: size, n. operations, duration), which compose the X & Y coordinates respectively:

Statistics02

In case of displaying two graphics (two periods), lines will be overlapped, that is, the X coordinates of the first and the second period will be overlapped).

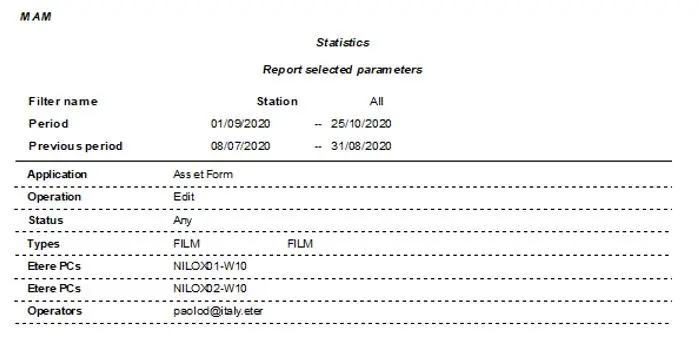

Print the Period 1 and Period 2 statistics data:

Statistics10

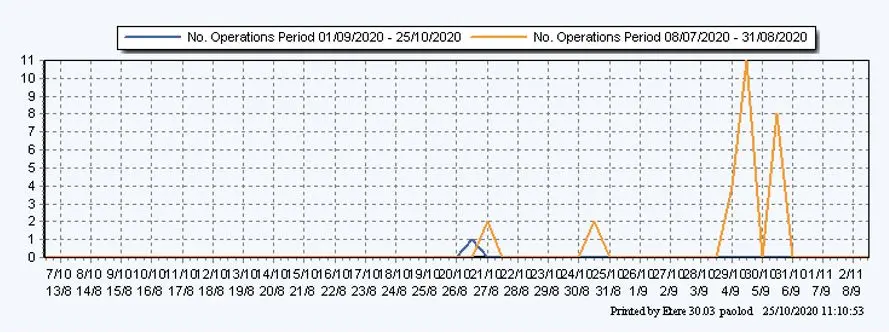

Print the statistics graphic:

Statistics11
