59.2.4.6 Set ARC from Media Library

The Media Library allows, under its "Properties > Video" section, to specify the aspect ratio of assets and aspect conversion (e.g. to convert them during ingest, preview or transmission automatically).

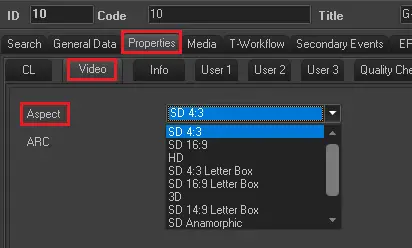

To set this information, go to the "Properties > Video" section of the asset and set the following information:

aspect_ml

Aspect - Specify the aspect ratio the asset is recorded in the media archive. The following SD and SD aspect ratios are supported:

AVAILABLE ASPECT RATIOS:
SD 4:3
SD 16:9
HD
SD 4:3 Letterbox
SD 16:9 Letterbox
3D
SD 14:9 Letterbox
SD Anamorphic
HD 14:9 Pillarbox
HD 4:3 Pillarbox

ARC - Specify the ARC conversion profile to be performed (by an embedded or external converter) for the current asset. Available SD/HD conversion profiles depend on the asset's Aspect (set above):

arc_ml

ASPECT RATIO: SD 4:3 > AVAILABLE CONVERSIONS: None - SD 4:3 - HD Anamorphic - HD Crop - HD Full - HD Pillar - Unknown

ASPECT RATIO: SD 16:9 > AVAILABLE CONVERSIONS: None - SD 16:9 - HD Anamorphic - HD Crop - HD Full - HD Pillar

ASPECT RATIO: HD > AVAILABLE CONVERSIONS: None - HD - 4:3 Anamorphic - 4:3 Crop - 4:3 Full - 4:3 Letter

ASPECT RATIO: SD 4:3 Letterbox > AVAILABLE CONVERSIONS: None - SD 4:3 Letterbox

ASPECT RATIO: SD 16:9 Letterbox > AVAILABLE CONVERSIONS: None - SD 16:9 Letterbox - HD Anamorphic - HD Crop - HD Full - HD Pillar

ASPECT RATIO: 3D > AVAILABLE CONVERSIONS: None - 3D

ASPECT RATIO: SD 14:9 Letterbox > AVAILABLE CONVERSIONS: None - SD 14:9 Letterbox - HD Anamorphic - HD Crop - HD Full - HD Pillar

ASPECT RATIO: SD Anamorphic > AVAILABLE CONVERSIONS: None - SD Anamorphic - HD Anamorphic - HD Crop - HD Full - HD Pillar

ASPECT RATIO: HD 14:9 Pillarbox > AVAILABLE CONVERSIONS: None - HD 14:9 Pillarbox - 14:9 Crop - Anamorphic - Fullscreen - Letterbox

ASPECT RATIO: HD 4:3 Pillarbox > AVAILABLE CONVERSIONS: None - HD 4:3 Pillarbox - 14:9 Crop - Anamorphic - Fullscreen - Letterbox

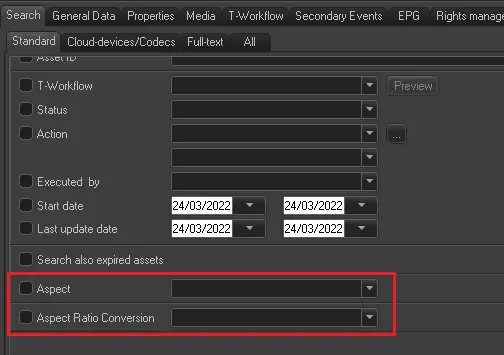

It's also possible to filter the search results using the Aspect and Aspect Ratio Conversion filters:
aspect_arc_filters
