69.1.1.3 CISCO ROSA

Export Scope
The F90 - CISCO ROSA export creates an .XML file containing the on-air schedule of one or more days. This export was developed to provide Cisco Rosa Service Information a file containing EPG information such as event schedule descriptions, and other event-related topics in a television network.

Export Parameters
This export allows the following parameters to be set:

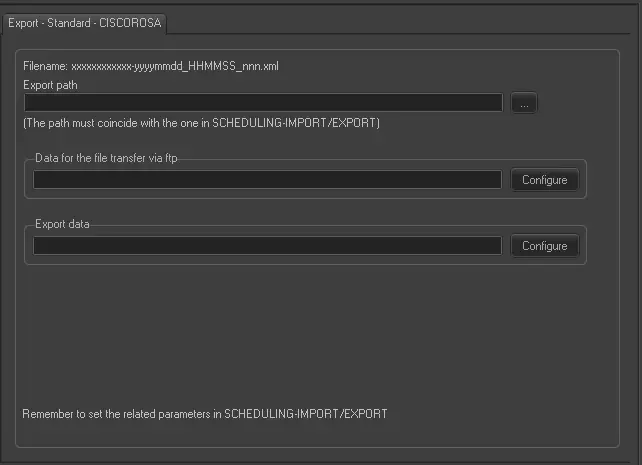

Export - Standard - CISCO ROSA

Filename - A single .XML file would be exported with a specific file name format "xxxxxxxxxxxx-yyyymmdd_HHMMSS_nnn.xml", where:
- xxxxxxxxxxxx: Prefix characters defined by the user in Etere Scheduling > Import/Export
- yyyymmdd: The export date in year, month, day format.
- HHMMSS:  The export time in hour, minutes and seconds format.
- nnn: A progressive number (from 000 to 999)
Export Path (leave it blank to not export it) - This parameter is required only if you intend to save the exported file to a computer in your network.
This path must coincide with the one set in Etere Scheduling > Import/Export.
Data for the file transfer via FTP - Click on the Configure button and define the FTP parameters as described in Configure Data File Transfer via FTP chapter.
Export data - Opens the Configure Export window to specify the days to be exported and the frequency of the export. See chapter Configure Export for more information.

Scheduling related export
Besides the prefix characters, also the description, synopsis and minimum duration fields must be set under the Etere Scheduling > Import/Export > EXPORT\STANDARD\CISCO\EPGROSAXML.

Sample exported file

<?xml version="1.0" encoding="utf-8"?>
<divitech_epg xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="divitechEPG.xsd" version="3.6">
 <schedule channel_id="2111" utc_offset="0">
   <event event_id="20091111050800" bill_time="2009-11-11 05:08:00" actual_time="2009-11-11 05:08:00" end_time="2009-11-11 05:11:00" genre_level="5:0" production_year="2007" synchronized="1">
     <description language_code="eng" title="Futz!" short_synopsis="Servant Futz escorts Emperor Yammermouth into the Coliseum. As he watches the Biggs the Gladiator win approval, he envisions himself also pleasing his king via on offering of fruit." long_synopsis="" production_country="" />
     <parental_rating country="AUS" rating="6" />
   </event>
   <event event_id="20091111051100" bill_time="2009-11-11 05:11:00" actual_time="2009-11-11 05:11:00" end_time="2009-11-11 05:22:00" genre_level="5:0" production_year="2008" synchronized="1">
     <description language_code="eng" title="The Mr Men Show" short_synopsis="Mr Grumpy is annoyed by people sitting above him at a game of Dillyball; Miss Magic tries to help Mr Rude in a resturant kitchen; Mr Noisy tries to sell Miss Scary a vacuum cleaner." long_synopsis="" production_country="" />
     <parental_rating country="AUS" rating="6" />
   </event>
   <event event_id="20091111052200" bill_time="2009-11-11 05:22:00" actual_time="2009-11-11 05:22:00" end_time="2009-11-11 05:33:00" genre_level="5:0" production_year="2005" synchronized="1">
     <description language_code="eng" title="Tracey McBean" short_synopsis="Megan has dreams of becoming a famous TV weather presenter and challenges Tracey to come up with an invention that will make all of her weather predictions come true." long_synopsis="" production_country="" />
     <parental_rating country="AUS" rating="6" />
   </event>
   <event event_id="20091111053300" bill_time="2009-11-11 05:33:00" actual_time="2009-11-11 05:33:00" end_time="2009-11-11 06:00:00" genre_level="5:0" production_year="2009" synchronized="1">
     <description language_code="eng" title="Dex Hamilton: Alien Entomologist" short_synopsis="While exploring the ruins of Ancient Egypt, an old colleague of Dex's mistakenly unlocks an ancient spell and transforms himself into a twisted supervillain." long_synopsis="" production_country="" />
     <parental_rating country="AUS" rating="6" />
   </event>
 </schedule>
</divitech_epg>
