59.5.8.7 EPG Report

Report Description

The EPG Report allows for generating a document containing the EPG information (Electronic Program Guide) of programs scheduled within a given period. EPG information is retrieved from the asset's EPG fields compiled under "Media Library > Metadata > EPG 1, 2".

Report Filters

All the parameters that permit a detailed report generation have been spread across seven different tabs to allow a more manageable configuration. By default, all filters are disabled (i.e., either blank or unselected); to enable them, it is enough to configure at least one parameter inside. Available filters include:

•Date

Indicate the time criteria to be used for filtering events; it is possible to define any of the following methods:

- Interval: It permits to specify if the days to be included will be taken from a given custom date or one of the standard filters (i.e., 'current day', 'this week', 'next week', 'current month', 'current year', 'today's month date', 'today's  year day', 'previous month', 'previous year', 'last 30 days, 'following 30 days' or 'all dates'),

- Time: Indicate if the report will include the whole day scheduling or only a specific time interval.

•EPG data

Specify if only those events in which EPG data have been compiled will be included in the report or not by selecting one of the two following fields:

- Print-only programs with EPG: Use this filter to include in the report only those assets with enabled the "EPG" flag (under Media Library > Secondary events > DSK) will be included in the report and with at least one filled EPG field (under "Media Library > Metadata > EPG 1, 2, story).

- Print all programs: As their names indicate, all scheduled assets matching the selected filters will be included in the report if enabled.

•Object

Indicate the event type (s) that will be used to filter the events included in the report. Use the 'hide groups and system types' option to display only those types defined by the station and hide those created by default Etere.

•Events Grouping

Select one of the following grouping options to include events in the EPG Report:
•Group by description: By selecting this option, EPG events that have been programmed more than once would appear as one event in the EPG report.
•Group exploded events: This option includes all the exploded EPG events in the report.

•Properties

This tab permits the customization of the layout of the report by selecting the complementary information that will be displayed on it. You can also decide to include some standard info, such as:
- Print date: Enable it to display the date (and time) in each page footer,
- Pages Number: If active, a progressive number will be displayed in the footer on all pages across the report,
- Operator: It is the login name of the person who performs the report,
- Station name: The name of the station from which the report is being performed,
- Multiple lines text: Enable this option to continue printing a detail in another line instead of truncating it (as by default).
- Interline: Enable this option to increase the space between lines to 1.5 cm (one-and-one-half); by default -when disabled- this space is set to 1 cm (single).
- Columns: It permits to specify the database fields that will be included in the report. The column headers in the top part of the columns window will be displayed as shown in the report. It is possible to arrange them just by using drag and drop.

NB: Some of the columns available here include Category (genre group), CL (parental classification), CA (consumer advice), CC (closed captions),  Notes (A, B and C), Production year, Story, CL external code, Type, Type code and much more.

Display Active Filters

In the middle of the form, a summarizing list will be displayed containing all the filters enabled for the current report:
3708_Display_Active_Filters

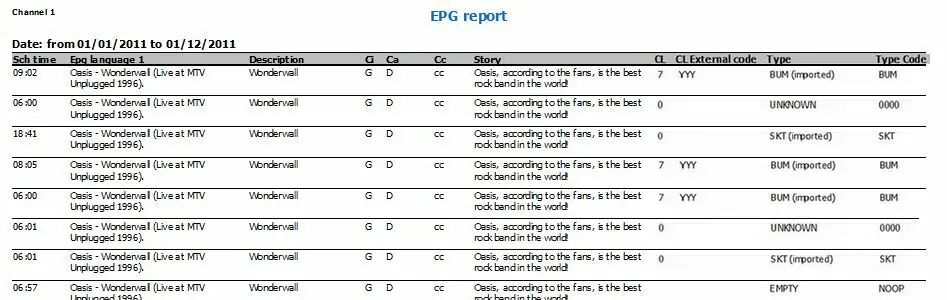

Report Preview

The [Settings] permits configuring the page layout of the outgoing document; once filters and settings have been set, it will be possible to select between displaying a preview using the related [Preview] button or printing the document directly using the [Report] button. Please note that some reports permit the export of the generated document in the most common formats (PDF, CSV, doc, xls, XML, etc.) just by using the [Export] button.

Automation_EPG_Report
