70.3.6.7 Multiple libraries

As shown in the "Common usage scenarios" chapter, Etere HSM supports managing multiple libraries located in either the same or different geographical areas.
Multiple libraries configuration

Workflow implementation
The implementation of HSM T-workflows to archive and restore assets across multiple libraries is almost the same as regular HSM workflows, the basic structure is shown below:
Multi-Library Archive T-workflow
Action - Set current metafile
Description : Indicates the device (e.g. LoRes-Miami) and codec (e.g. MP4) of the file to be archived.
Action - Set HSM archiving media pool
Description : Indicates the media pools (e.g. MP_Proxy_Miami, MP_Proxy_Sydney and MP_Proxy_London) where files will be archived, specifying a selection priority.
Action - HSM archive current metafile
Description : Commands the HSM Headquarters to archive a file (e.g. MP4 @LoRes-Miami) into a selected media pool (e.g. MP_Proxy_Miami).
Note: Please refer to the "Predefined HSM Archive T-workflows" chapter for more detailed information.
Multi-Library  Restore T-workflow
Action - HSM Restore
Description : Commands the HSM Headquarters to restore a certain file (e.g. MP4) from a specific library server (e.g. Petasite_Miami) that contains the file's related tape.
Note: Please refer to the "Automatic HSM Restore T-workflows" chapter for more detailed information.

Important considerations
When managing multiple libraries, it's important to note the following considerations:
▪Media pools must be defined for specific locations (e.g. MP_Proxy_Miami, MP_Proxy_Sydney, MP_Proxy_London, etc.)

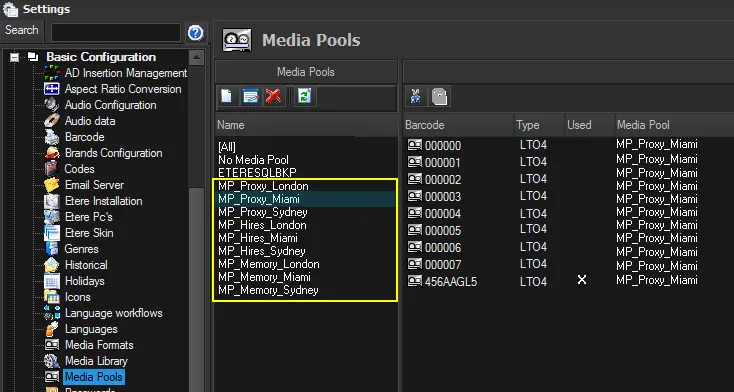

Media pools
▪Tapes are automatically associated to libraries (e.g. Petasite_Miami, IBM_Sydney, Quantum_London, etc.) after being used for archiving:

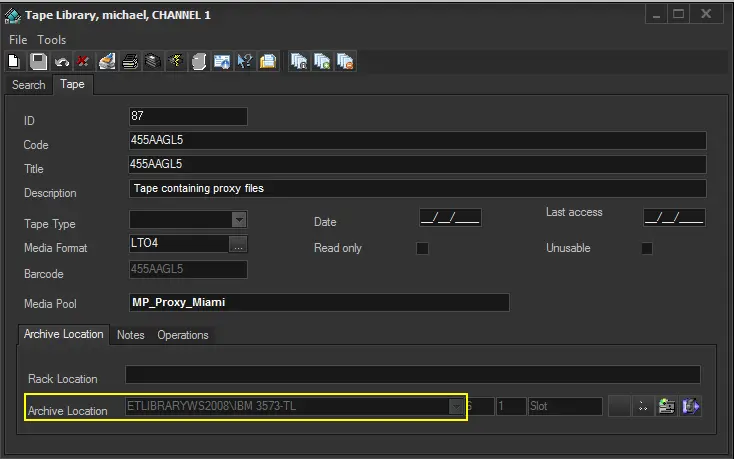

Tapes Library

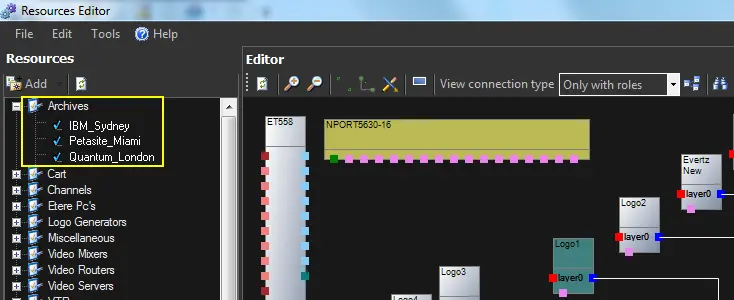

▪Libraries managed across locations (e.g. London, Miami, Sydney, etc.) should be configured in the resources:

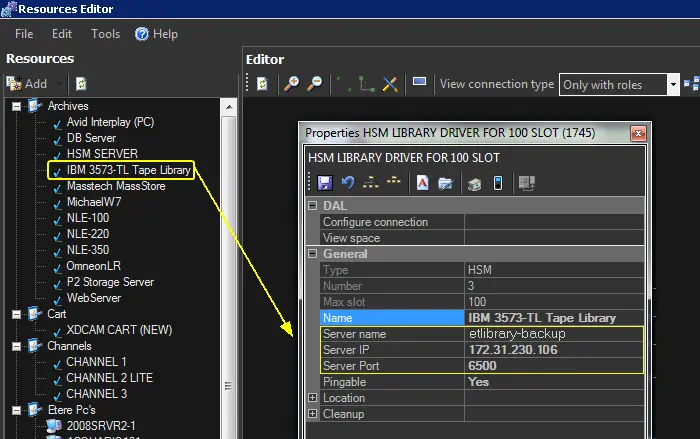

Resurces Editor
▪Cloud-devices can be defined for locations (e.g. HiRes_Miami, HiRes_Sydney, HiRes_London, etc.) to allow a differentiated management of files:

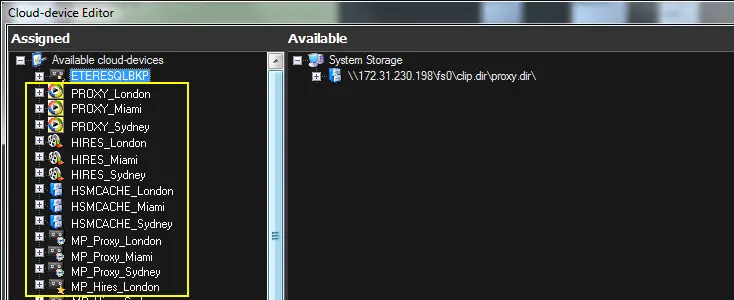

Cloud-devices Editor
