59.5.18.1 Badge

Report Description

This report allows outputting specific fields from the personal data database arranging information as badges.

Report Filters

All the parameters that permit a detailed report generation have been spread across seven different tabs to allow a more manageable configuration. By default, all filters are disabled (i.e., either blank or unselected); to enable them, it is enough to configure at least one parameter inside. Available filters include:

•Layout: Select the layout template that will be used for printing the badges,

•Fields: Specify the database fields that will make up the badge. To add or remove fields, just double-click on it and select if it will be enabled, its position and its font type,

•Sort by: Indicate the field that will be used as the sort criteria,

•Search Personal Data: Enter a text filter that must be present on any of the selected fields to be retrieved.

Report Preview

The [Settings] permits configuring the page layout of the outgoing document; once filters and settings have been set, it will be possible to select between displaying a preview using the related [Preview] button or printing the document directly using the [Report] button. Please note that some reports permit the export of the generated document in the most common formats (pdf, CSV, doc, xls, XML, etc) just by using the [Export] button.

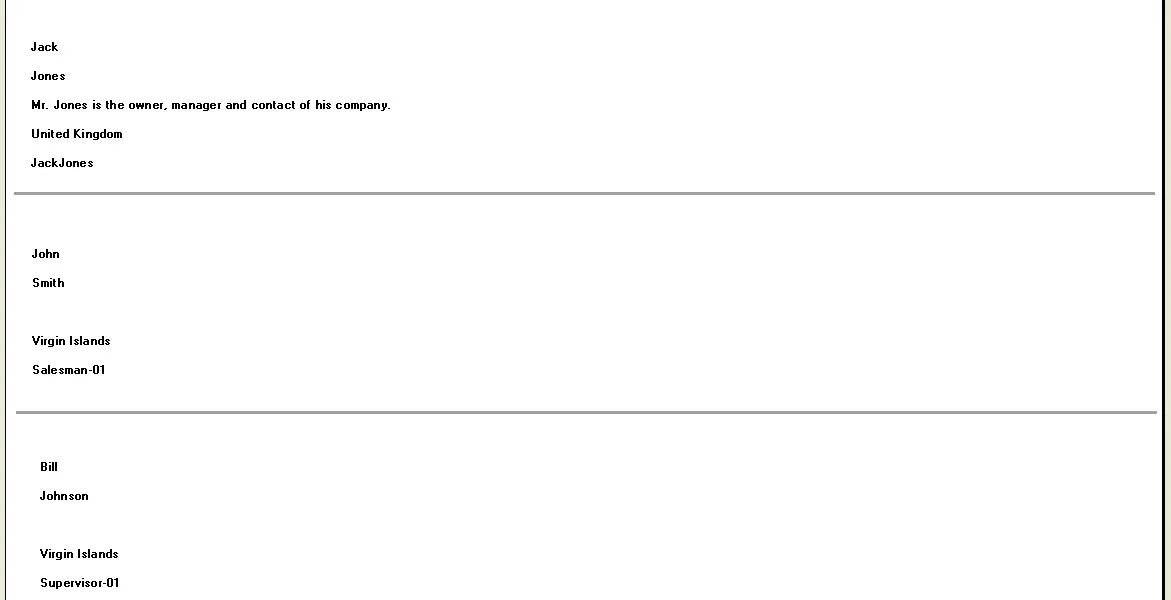

personal_data_badges
