69.1.1.13 PLAYBOX EXPORT PLY

Export Scope
The F90 – PLAYBOX EXPORT PLY export a playlist text file (*.ply) containing one day schedule for the playbox system.

Export Parameters

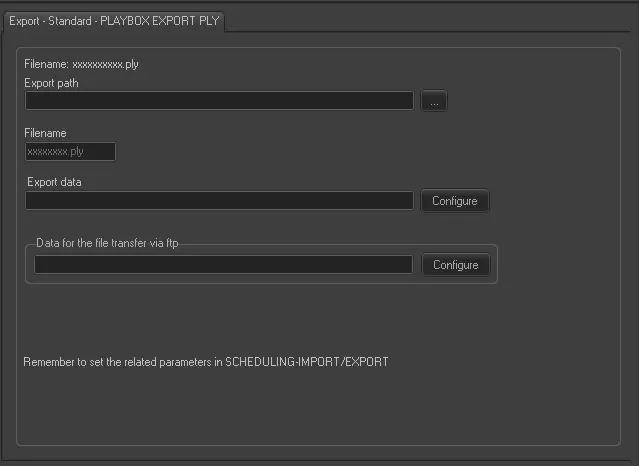

Export - Standard - PLAYBOX EXPORT PLY

Export path - Specify the location path to create the exported PLY file. You can use the browse button to select a path in the network drive.
Filename - The file name format is “xxxxxxxx.ply” where the file extension must be “.ply”
Export data - Click on <Configure> to open the Configure Export window to specify the days to be exported and the frequency for the export.
Data for the file transfer via FTP - Click on the Configure button and define the FTP parameters as described in Configure Data File Transfer via FTP chapter.

Launch the Export
Once all the parameters are fulfilled, click the <Start> to launch the export.

Schedule the export
Set the same parameters in the Etere Scheduling > Export > Playbox Ply, and apply changes once done.
