84.4.4.25 STANDARD > LEITCH

Export Scope
The LEITCH export allows exporting an XML file (with extension .LPL) containing the broadcast schedule of one selected day formatted conforming to the specifications of the GALVA format.
This export is useful for those stations which uses the GALVA standard for exporting their broadcast playlists.
Export parameters
This export allows the following parameters to be set and then [saved]:

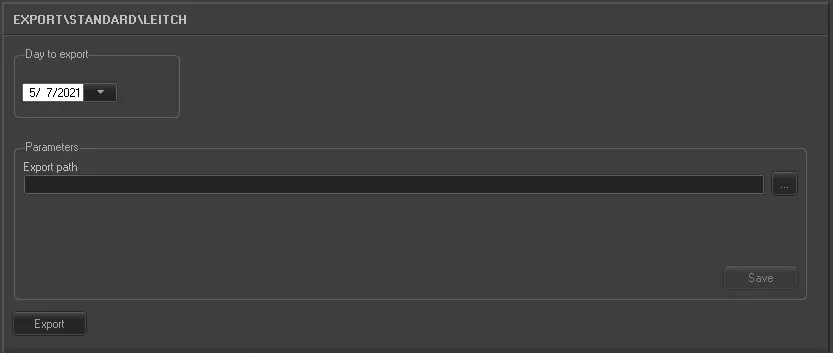

Export_standard_leitch

•Day to export: Specify the date from which data to be exported will be retrieved.
Parameters
•Export path: Indicate the path on which the exported file will be placed. Exported files will be named following the format:
DD MONTH YYYY.LPL                   where:
oDD MONTH YYY: The day, month and year of the exported schedule (e.g. 19 September 2012).
Launch the export
Once all parameters have been correctly set, just press the <Export> button to launch the export operation.
Sample exported file
<?xml version="1.0"?>
<PLAYLIST>
            <PLITEM>
                        <ENABLE>1</ENABLE>
                        <IDTYPE>3</IDTYPE>
                        <IDNAME>LABEL</IDNAME>
                        <DESCRIPTION>17 September 2012</DESCRIPTION>
            </PLITEM>
            <PLITEM>
                        <ENABLE>1</ENABLE>
                        <IDTYPE>0</IDTYPE>
                        <IDNAME>SIGN IN (05.30) III</IDNAME>
                        <DESCRIPTION></DESCRIPTION>
                        <TCTYPE>0</TCTYPE>
                        <DURATION>00:01:00:00</DURATION>                     <SOM>00:00:05:24</SOM>                      <EDDURATION>00:01:00:00</EDDURATION>
             <EOM>00:01:05:24</EOM>                <AIRTIME>10:56:00:20</AIRTIME>
                        <STATUS>Ready</STATUS>
                        <TYPE>PAL</TYPE>
                        <AGENCY></AGENCY>
                        <VIDEOFORMAT>MPEG2 4:2:2</VIDEOFORMAT>
                        <TAPENUMBER></TAPENUMBER>
                        <SLOTNUMBER></SLOTNUMBER>
                        <EVTCODE></EVTCODE>
                        <TIMEAIRED></TIMEAIRED>
                        <LOOPID>false</LOOPID>
            </PLITEM>
            <PLITEM>
                        <ENABLE>1</ENABLE>
                        <IDTYPE>0</IDTYPE>
                        <IDNAME>SIGN IN MTV Indonesia Raya I</IDNAME>
                        <DESCRIPTION></DESCRIPTION>
...
