Create Graphics with ETX CG Editor

66.4.4 Common Properties of Graphic Item

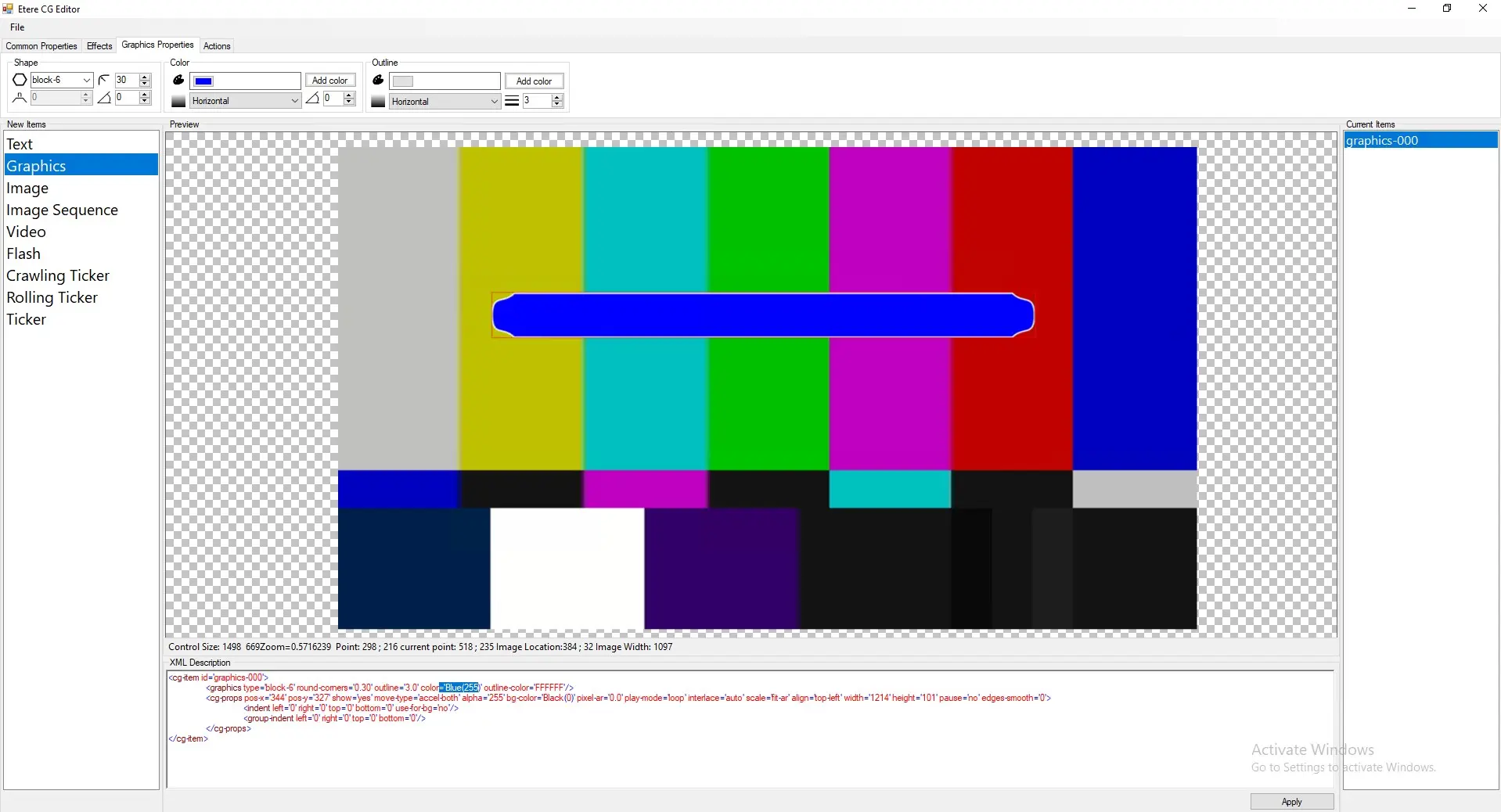

Colour: Colour of filling
Values: Colour according to Colors Palette
Example: Colour=’Blue(255)
blue_255

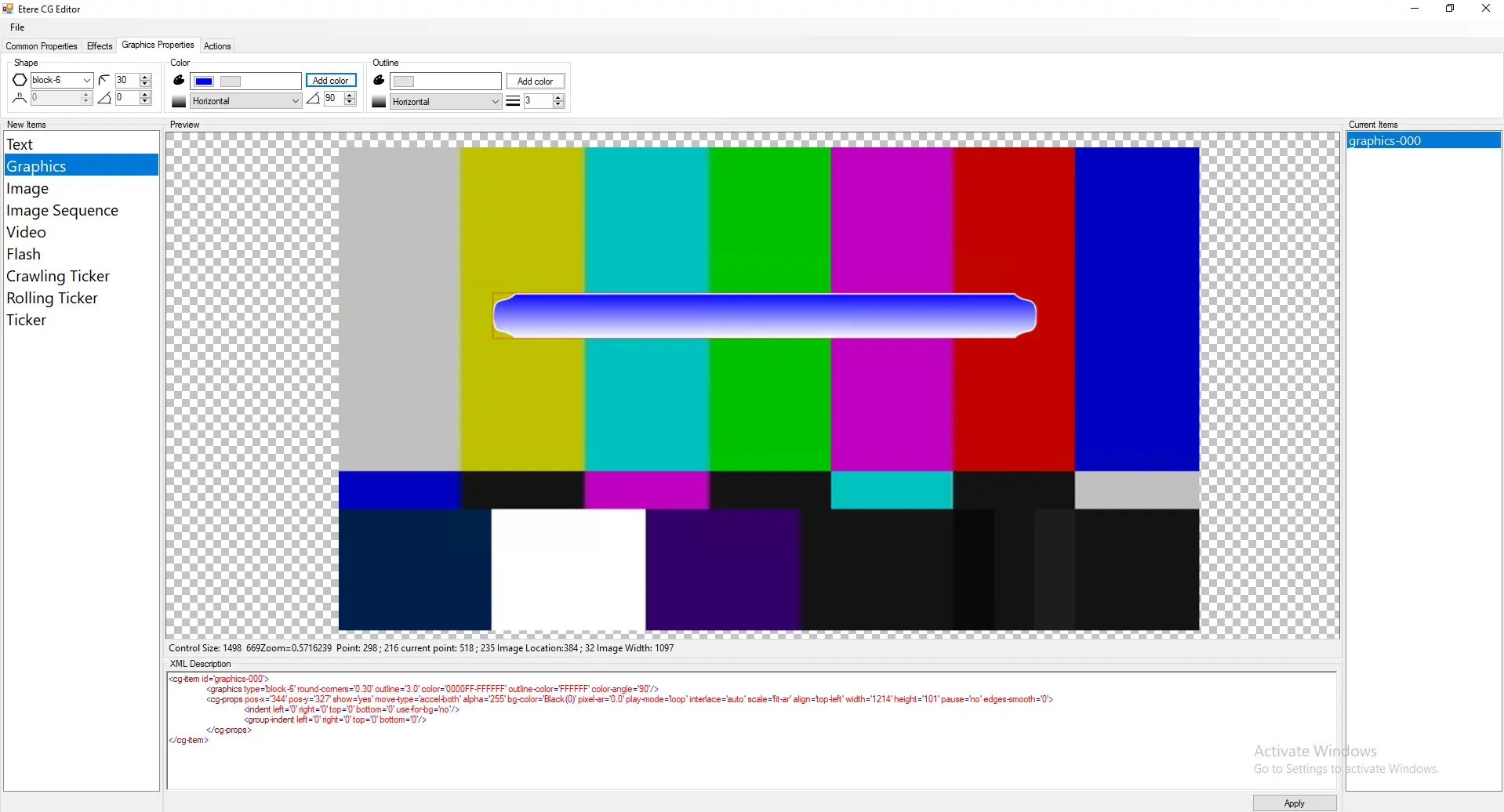

Colour-angle: Gradient angle of filling;
Values: Angle in degrees
Example: Colour-angle='90'
gradient_90

Outline: Outline width
Values: Width in pixels
Example: Outline=’8'
outline_8

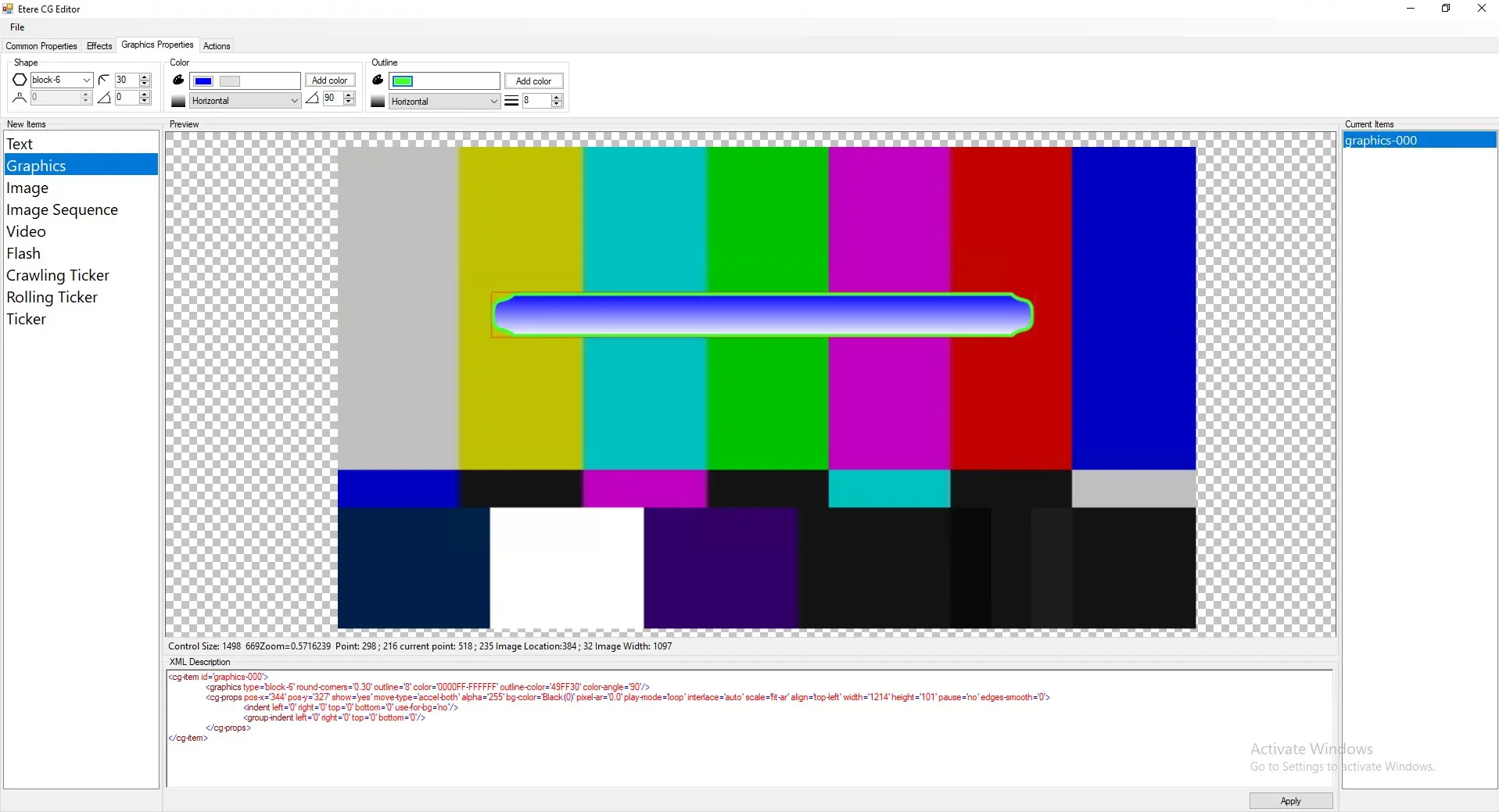

Outline-colour: Colour of outline
Values: Colour according to settings
Example: Outline-colour=’green'
outline_green

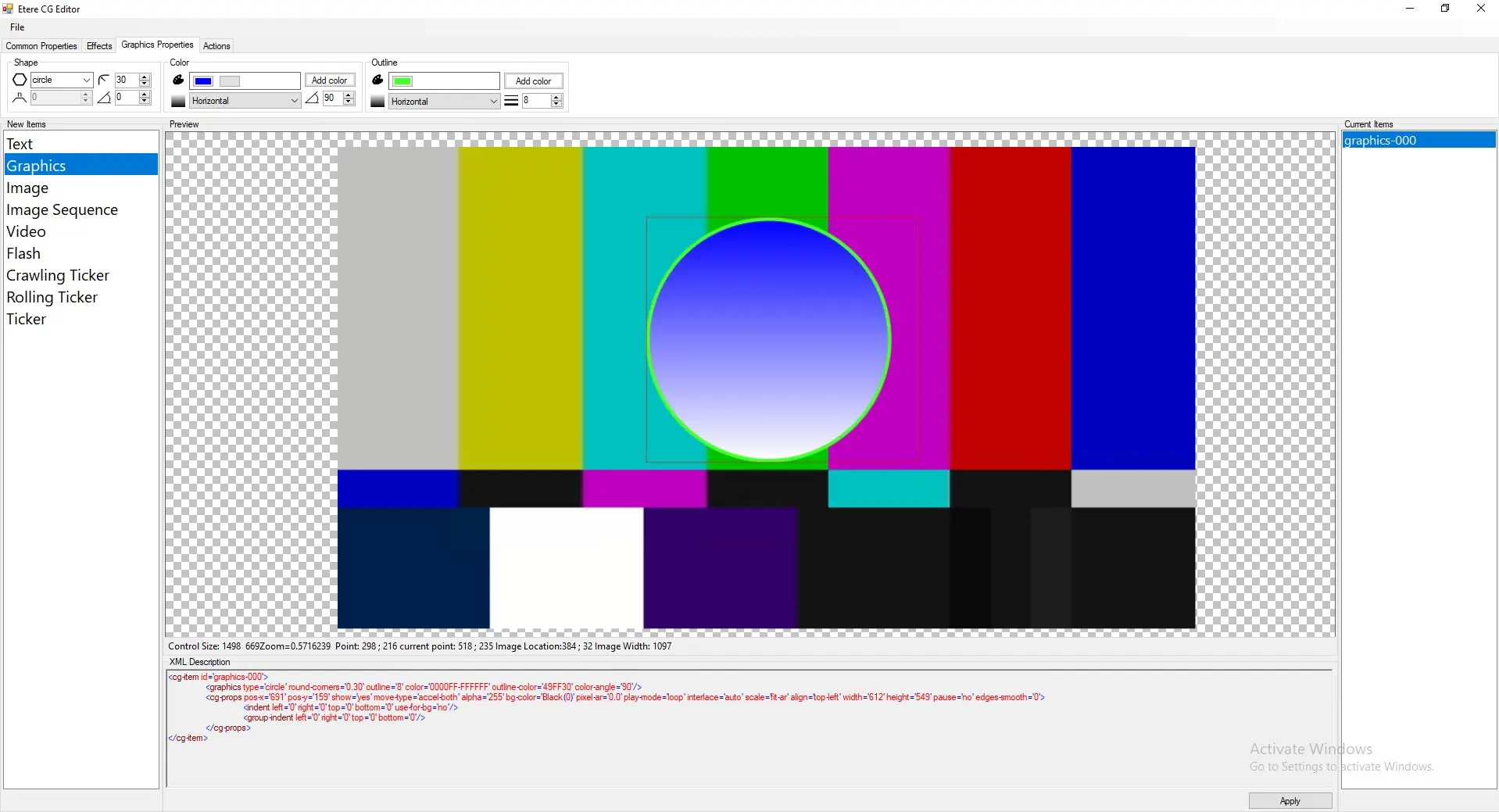

Type: Type of graphics
Values: Refer to the "Graphics Types" table.
Example: Type=’circle'
type_circle

Graphic Types

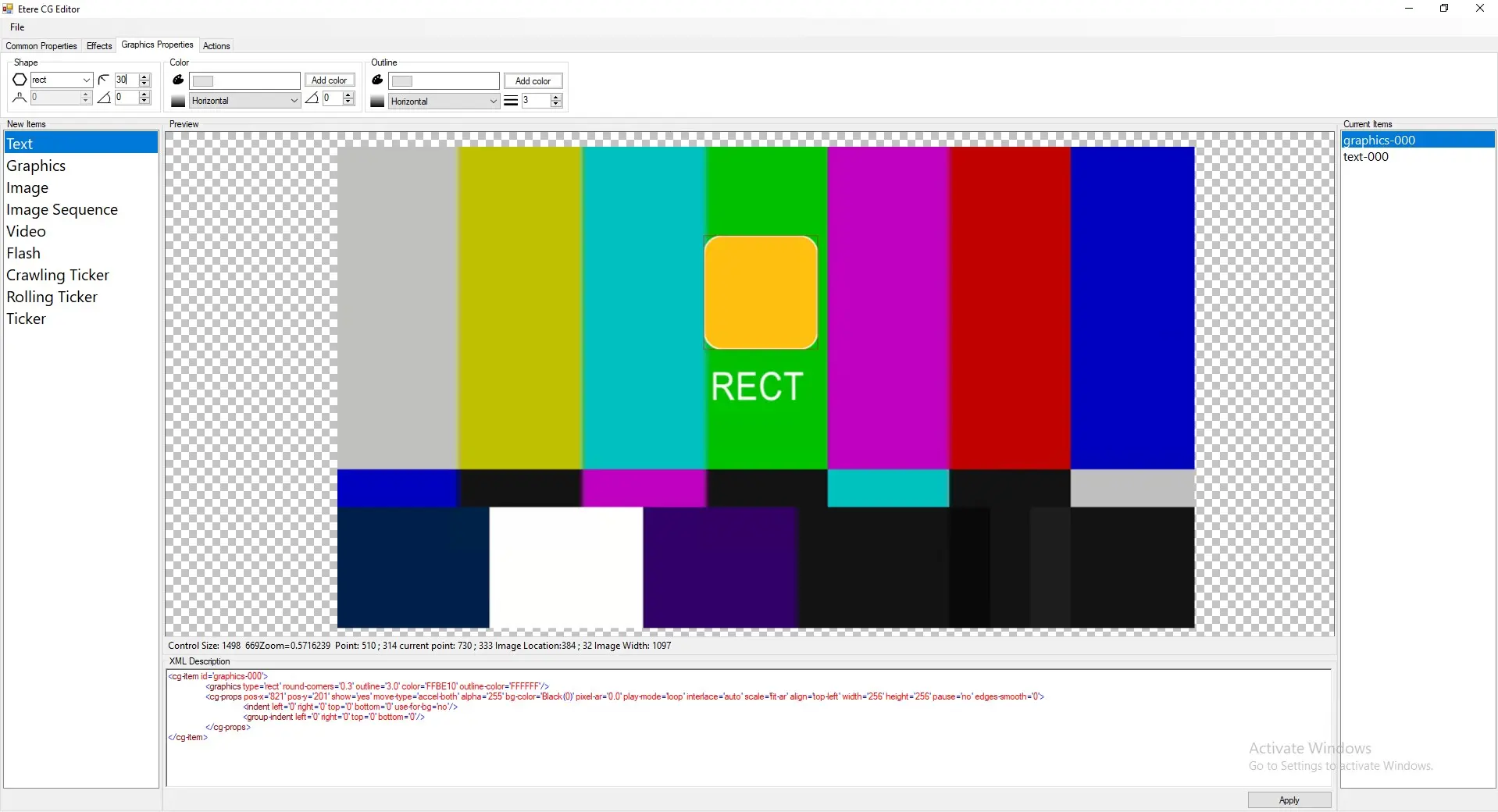

- Rect
  Default View :
  rect_round
  Additional Parameters: round corners to specify corner radius. For example, round-corners='0'>
  rect_sharp
- Block-1
  Default View :
  Additional Parameters: None
  block-1
- Block-2
  Default View :
  Additional Parameters: None
  block-2

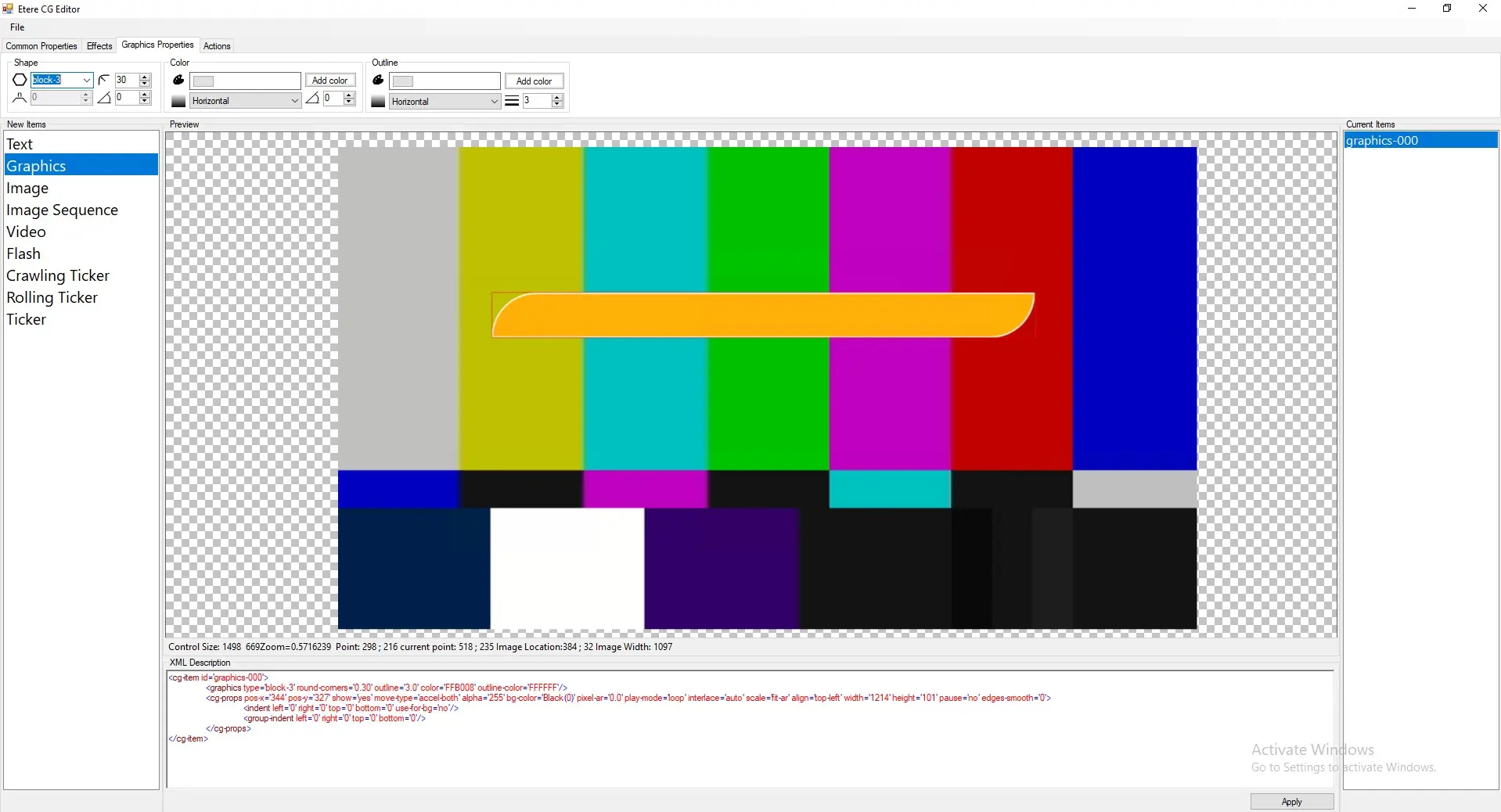

- Block-3 :
  Default View :
  Additional Parameters: None
  block-3
- Block-4
  Default View :
  Additional Parameters: None
  block-4
- Block-5
  Default View :
  Additional Parameters: None
  block-5

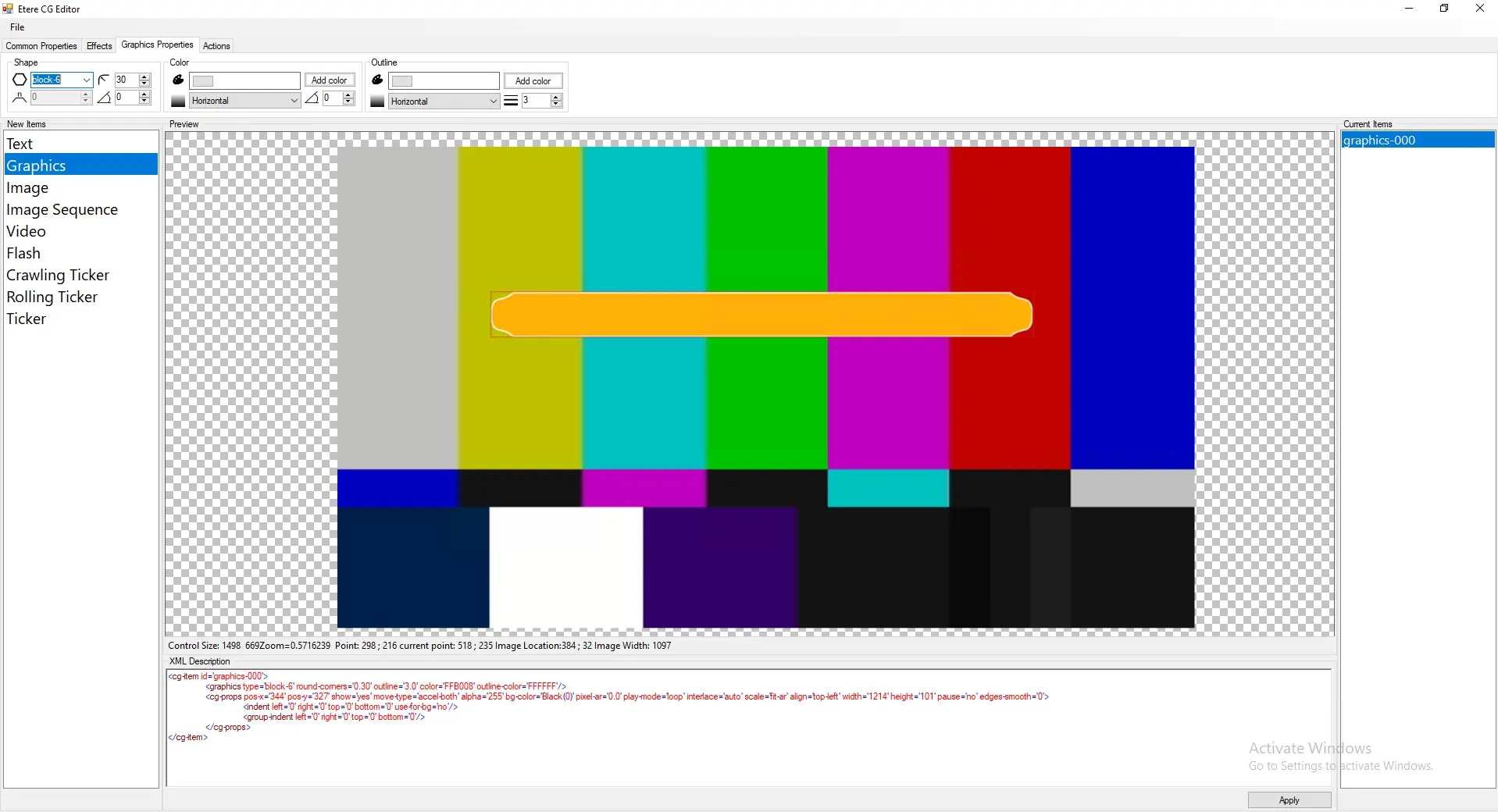

- Block-6
  Default View :
  Additional Parameters: None
  block-6
- Circle
  Default View :
  Additional Parameters: None
  circle

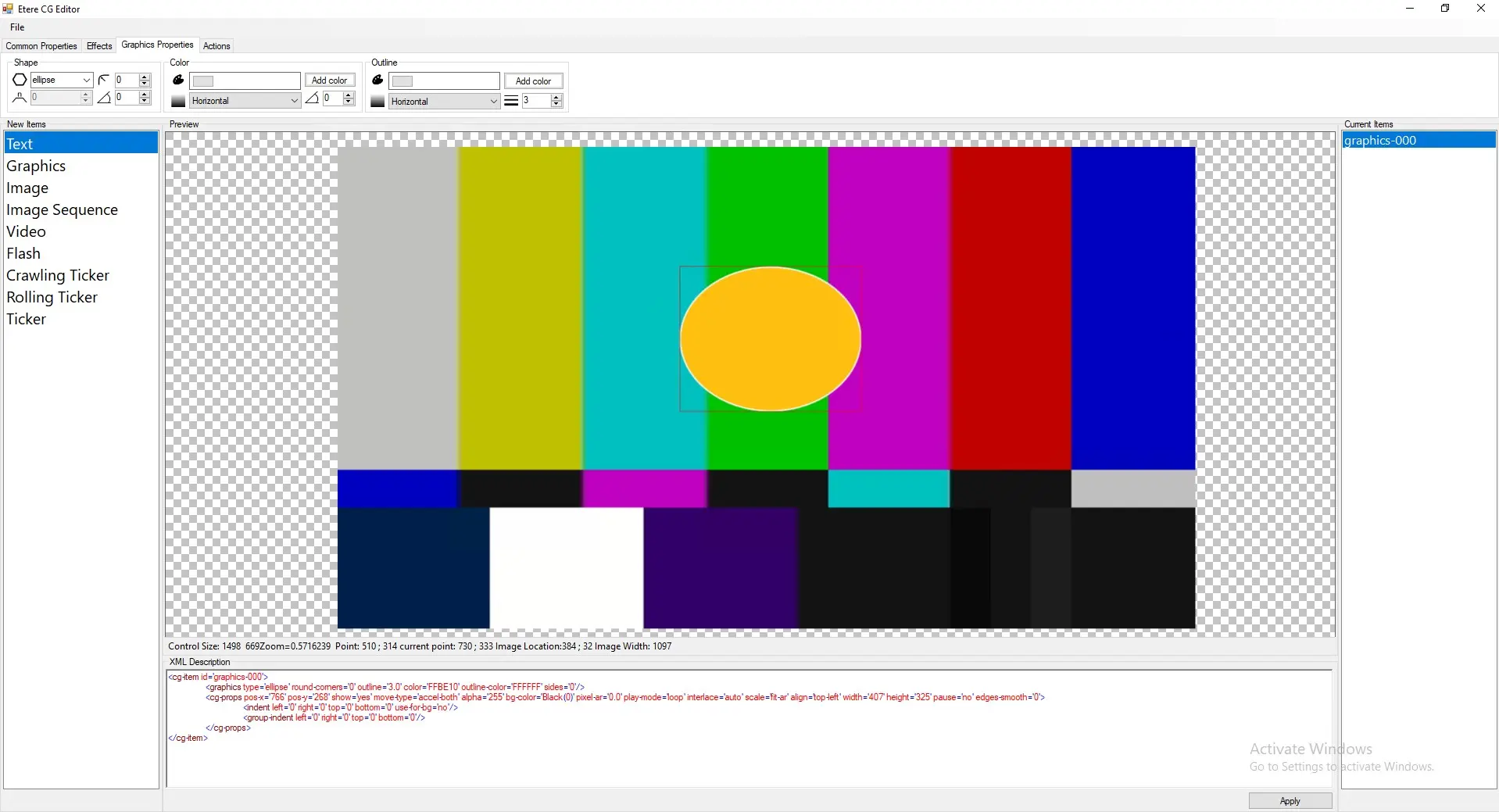

- Ellipsis
  Default View :
  Additional Parameters: None
  ellipse
- Triangle
  Default View :
  Additional Parameters: None
  triangle

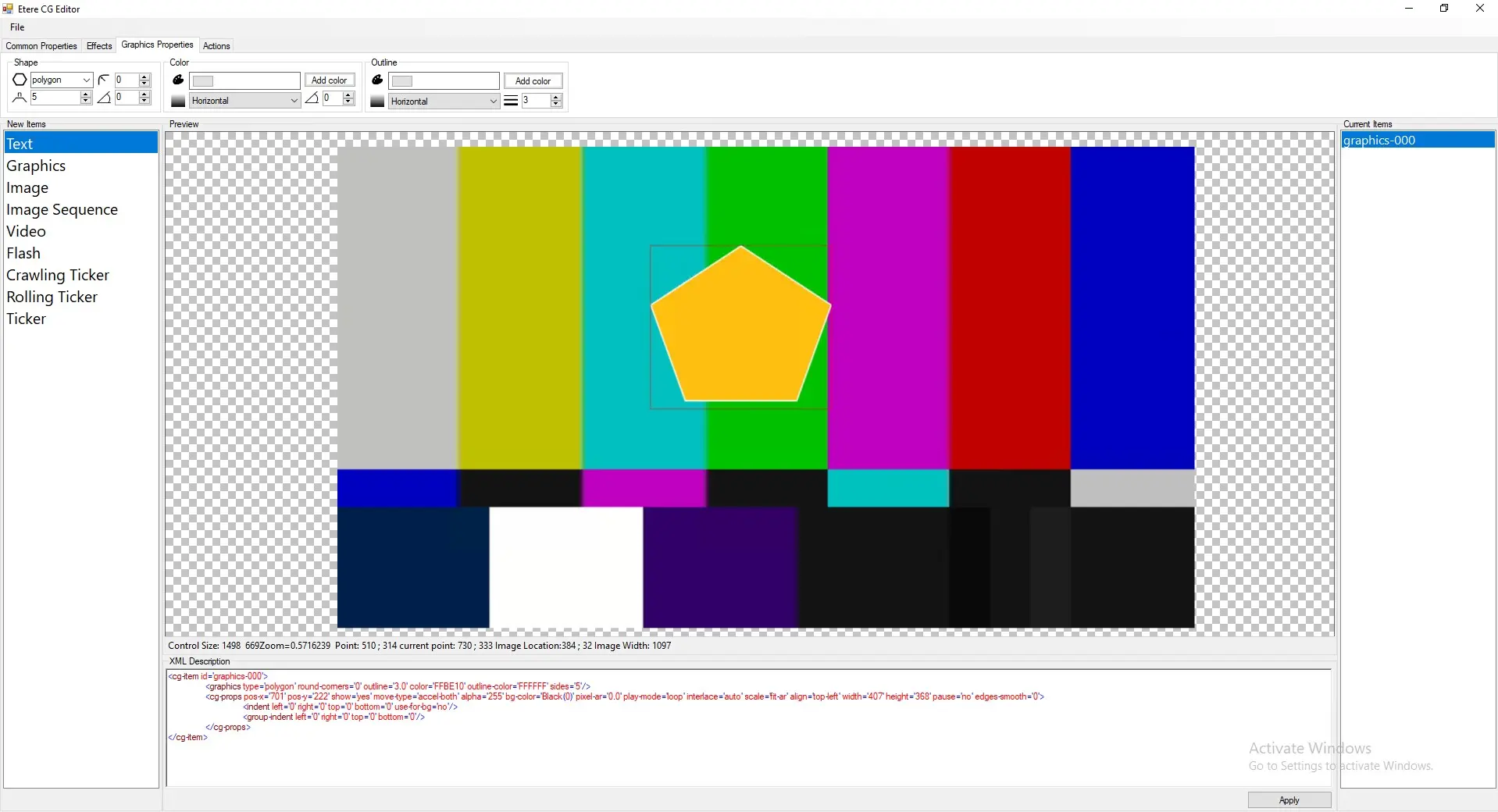

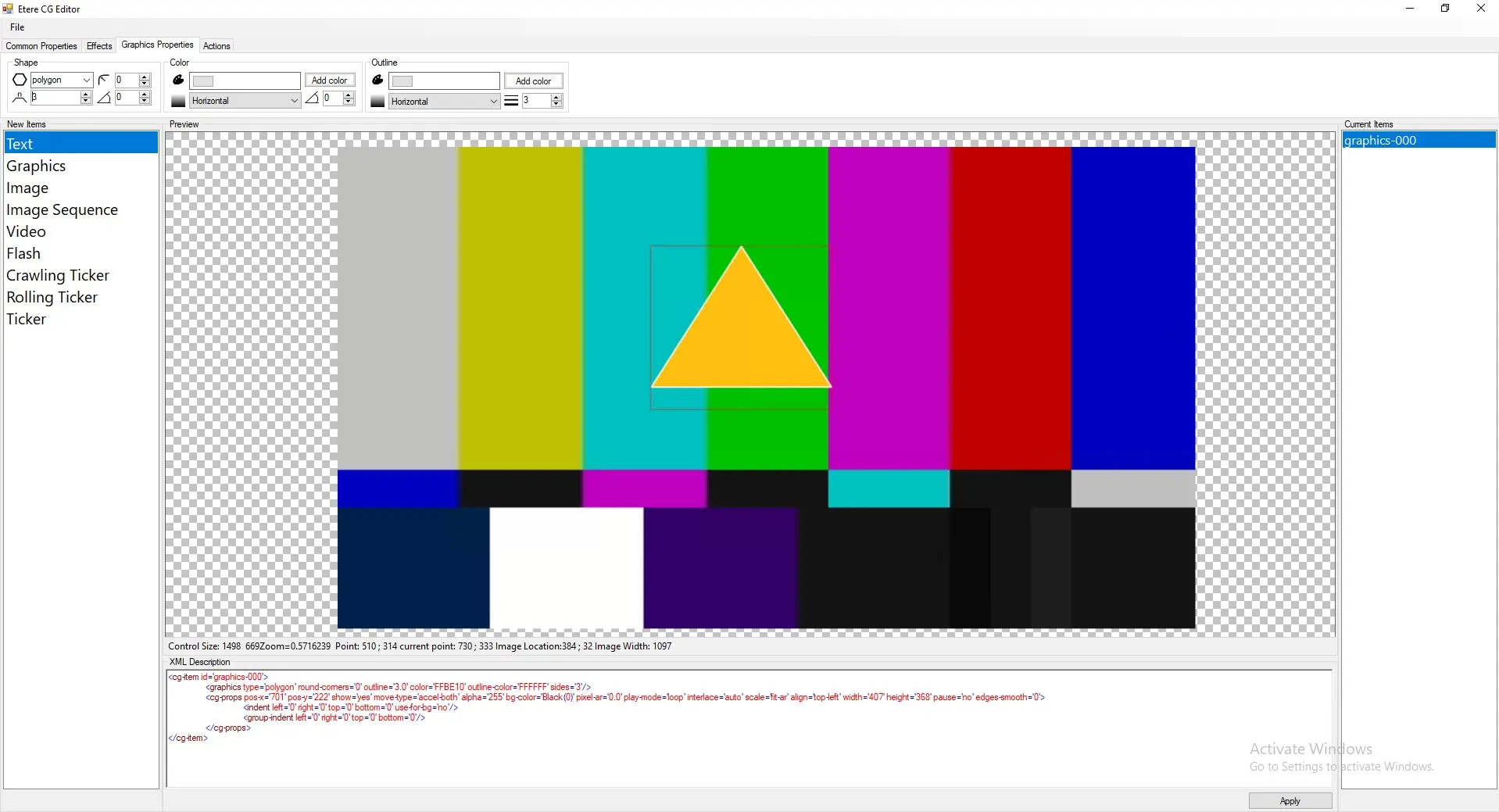

- Polygon
  Default View :
  Additional Parameters: sides to specify the number of sides. For example, sides='5'
  polygon_3
  polygon_5
- Star
  Default View :

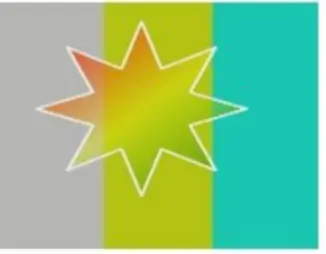

  Additional Parameters: sides to specify the number of rays. For example, sides='8':
  star
- Additional Parameters: sides to specify the number of rays. For example, sides='8':
  Embim69

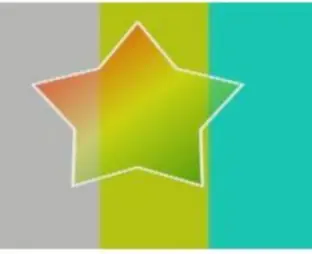

  star-inset to specify a depth of rays. For example, start-inset='0.4'
  Embim70
