93.3 How to Monitor MMS actions

Media Manager Service (MMS) having been developed as a service and not as an application has no graphical interface. Therefore, in order to monitor what it is doing, we have to only use ETEREWEB.

Once logged into your WEB instance, in the main menu on the left side browse to System > Media Manager Monitor.

What is Media Manager Monitor

The MEDIA MANAGER MONITOR section monitors which MEDIA MANAGER SERVICES are running, what they are doing and how they can be managed.

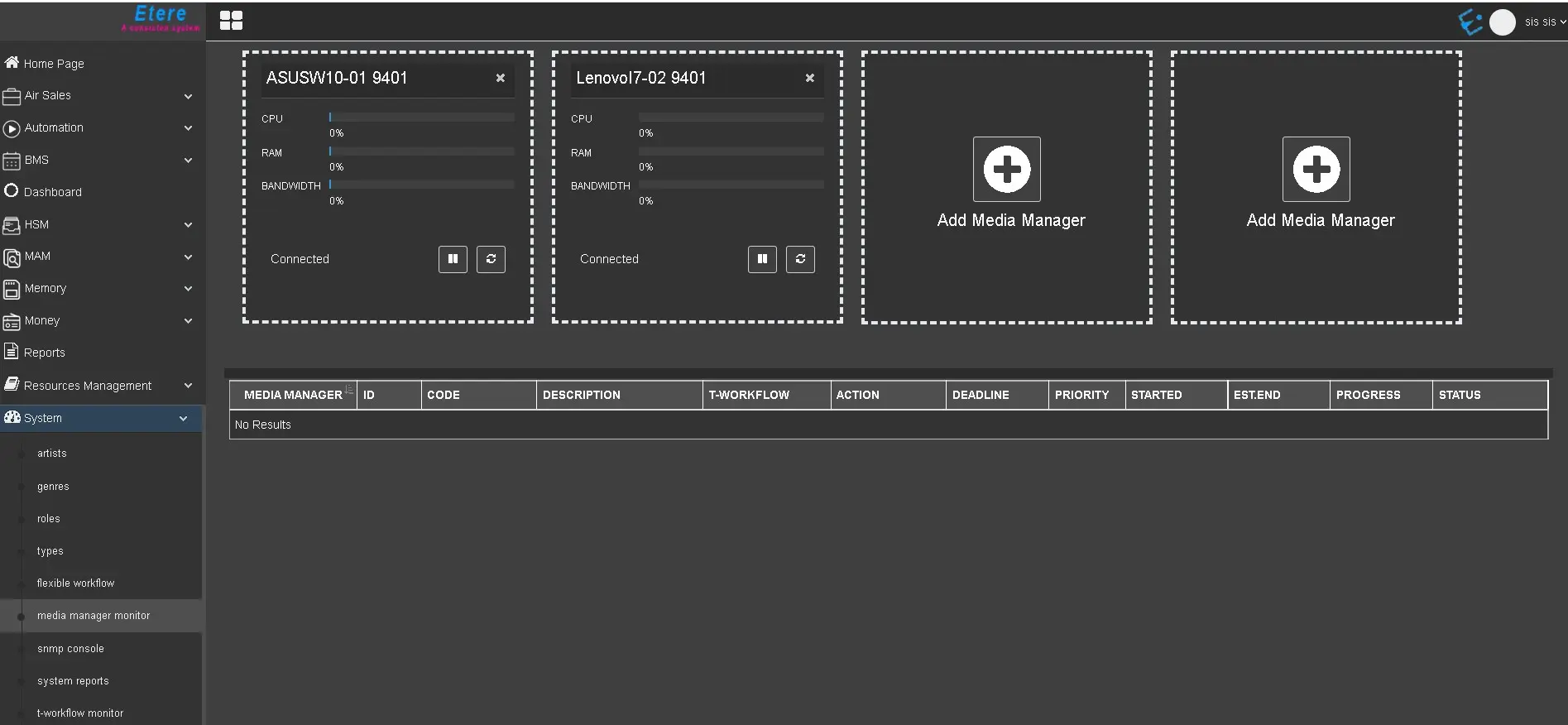

MediaManagerMonitor

How to add a new MMS to a dedicated box

To add a new MMS in the appropriate box, follow these steps:

1. Click on the add button.
2. Select from the drop-down menu the workstation where MMS is running (in this menu, the system will only show the list of workstations where MMS is installed).
3. Click on add.

Now, the newly added service will appear in the selected box.

AddNewMediaManagerService

How to remove a MMS from a box

To remove a specific MMS from its box, simply click on the related X button.

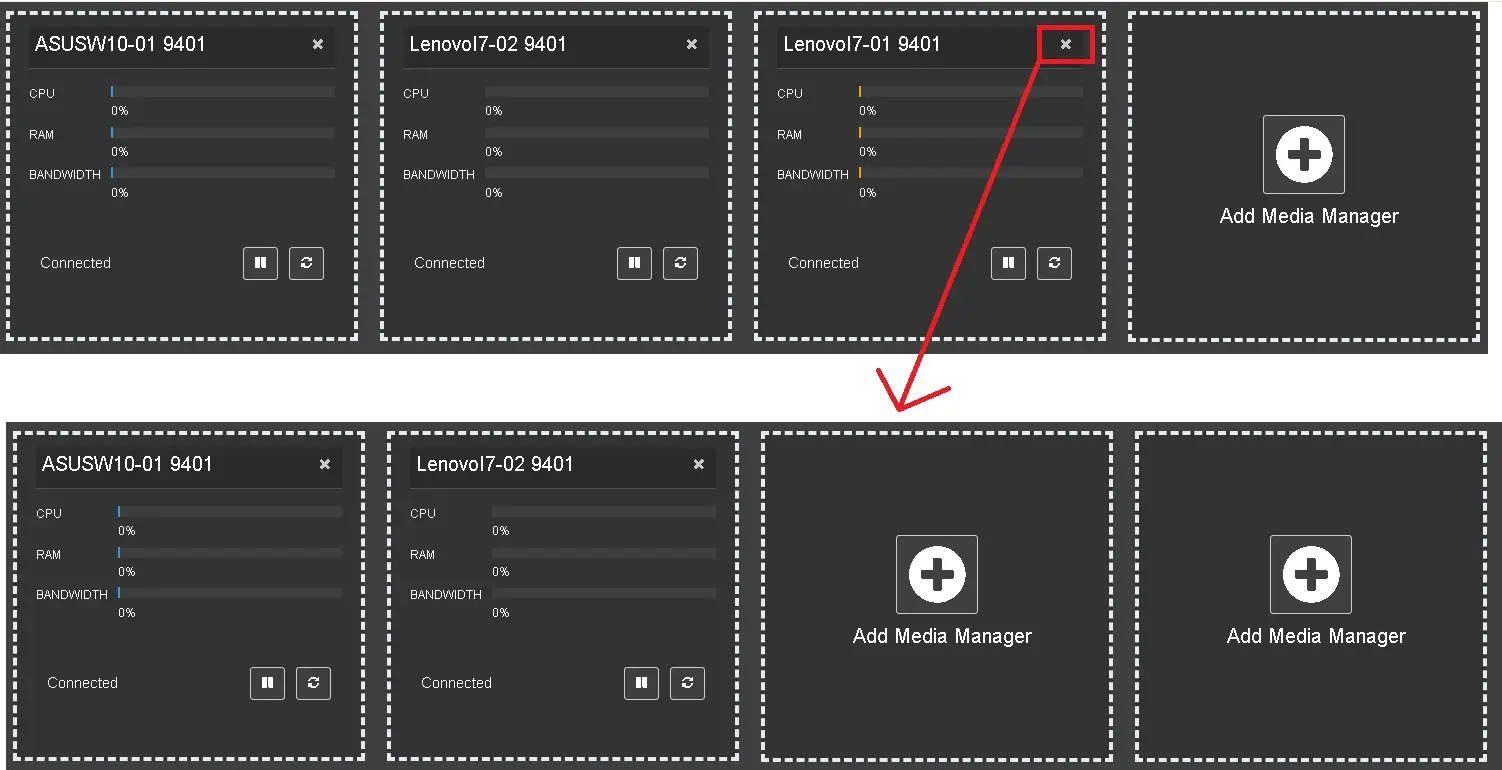

RemoveMediaManagerService

What information can be found in each MMS box

In each box relating to each MMS, you can find the following information:

CPU: It displays the percentage of the system's central processing unit (CPU) used by the action.

RAM: It displays the random-access memory (RAM) in use by the current action.

Bandwidth: It shows the data transmitted via a network connection in measured time.

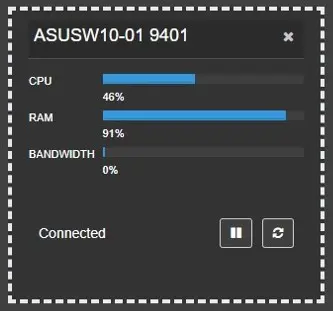

BoxMediaManagerService

Commands to send to each MMS instance

The main commands that you can send from the WEB to a specific service are:

PAUSE button: Pauses the service in the related workstation.

REFRESH button: It's used to update the queue of jobs in progress in the window below.

You found this command near the CONNECTED icon.

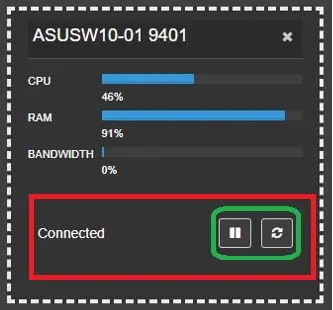

CommandsToSendToMediaManagerService

How to monitor which MMS actions are running

Once the MMS you want to monitor has been selected, Etere Web will show at the bottom centre all the actions that the related service is processing and the following information will be shown in the appropriate columns:

Media Manager: The name of the Media Manager server.

ID: The job ID assigned to the action.

Code: The asset code of the processing asset.

Description: The description of the asset.

T-workflow: The name of the T-workflow launched to execute the action.

Action: The name of the action embedded in the workflow.

Deadline: It displays the expiring date of the action, if any.

Priority: It displays the job priority set on the action, if any.

Started: The date and time when the process is started.

Est. End: The estimated time to complete the selected action.

Progress: Shows the percentage of progress of the action.

Status: The current status of the monitored process.

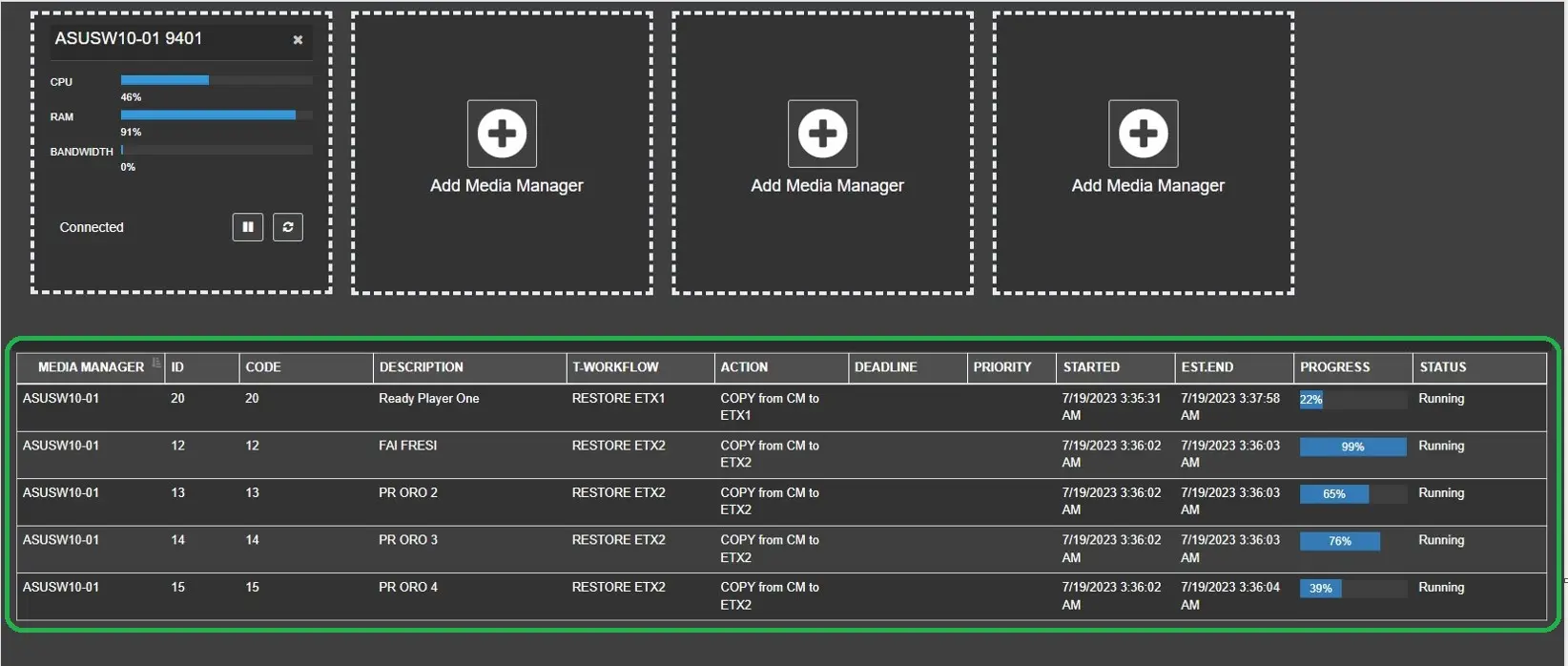

InformationAboutMediaManagerService
