59.3.9.38 Draw workflow from Web

Action Description
To enable viewing T-workflow drawing from Internet Explorer, Firefox or Chrome web browser.  When the browser is launched, the start and end of the T-workflow, the connections between each action block, its priority setting, and the metafile ID for each action block are displayed.

Action Parameters
Under this section, it is possible to create new actions based on the following parameters:
•Name: the name of the T-workflow
•Priority: show priority setting in the T-workflow
•Metadata ID: show file ID

How to use it

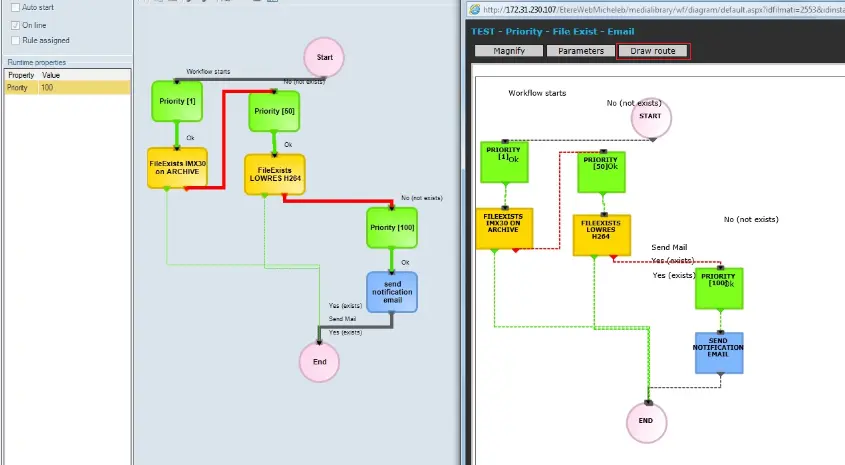

Once the T-workflow is created, launch the T-workflow and click on the <Draw Route> tab to display the T-workflow drawing from the Web.
