84.4.5.51 CUSTOM > CSC > CLIP TXT

Import scope
The custom CSC Clip TXT import allows to import into the Etere's database a .TXt file containing the ingest operations performed on a memory card in the Etere tables.

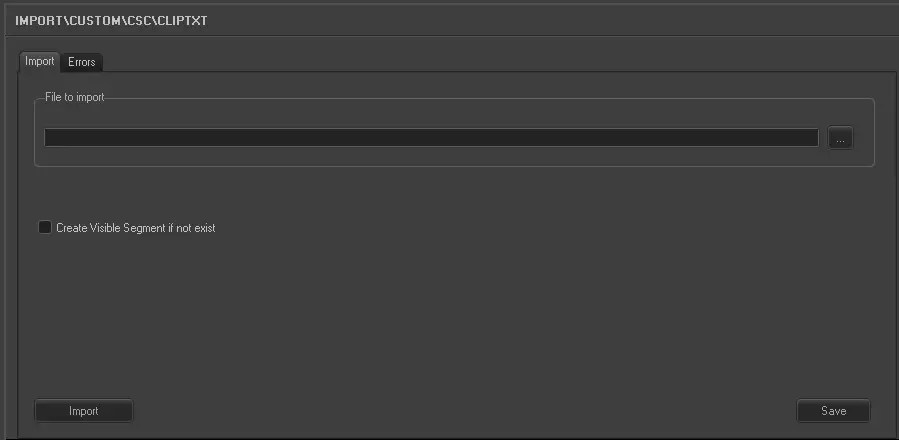

Import parameters
This import module requires the following parameters to be set in order to be correctly used:

Import_custom_csc_clip_txt

•File to import: Browse for the file from which data will be imported, only .TXT files will be displayed since they are the only supported.
•Create Visible Segment if not exist: Enable this option to insert visible segments if the segment does not exist.  Visible segments can be used to calculate the commercial crowding of the asset, or define suitable segments in asset.
Launch the import
Once the import has been configured, it can be started just by pressing the <Import> button, once the import has finished, it will be possible to display the schedule of the related day to verify and/or approve the import operation.
Sample file to import
The file to be imported using this method will have to the following structure in order to be correctly imported:
clip--  cass.-  evento----------------------------------  tipo  luogo---------- descrizione-----  descrizione sequenza--------------  dispositivo---------  CH1-----------  CH2---------  data----  note-
00019Q 189212  VIAGGIO DI EMMAUS E GIANCARLO IN CAMERUN       GEN2    DUALA (CAMERUN) VIAGGIO A FONTEM        CARICO DEI BAGAGLI AL CZ FEMMINILE AG-HPX171E/K8TCA0165   MIC TELECAMERA MIC AMBIENTE   05/01/09       UNICA
0002QH  189212  VIAGGIO DI EMMAUS E GIANCARLO IN CAMERUN        GEN2    DUALA (CAMERUN) VIAGGIO A FONTEM        CARICO DEI BAGAGLI AL CZ FEMMINILE AG-HPX171E/K8TCA0165    MIC TELECAMERA MIC AMBIENTE    05/01/09        UNICA
0003G8  189212  VIAGGIO DI EMMAUS E GIANCARLO IN CAMERUN        GEN2    DUALA (CAMERUN) VIAGGIO A FONTEM        CARICO DEI BAGAGLI AL CZ FEMMINILE AG-HPX171E/K8TCA0165    MIC TELECAMERA MIC AMBIENTE    05/01/09        UNICA
As shown above, for each recording it will be detailed the clip code, tape code, event name, event type, recording location, event description, event sequence description, dispositive code, channel 1, channel 2, recording date and additional notes.
